MP05404

Crystals Overview

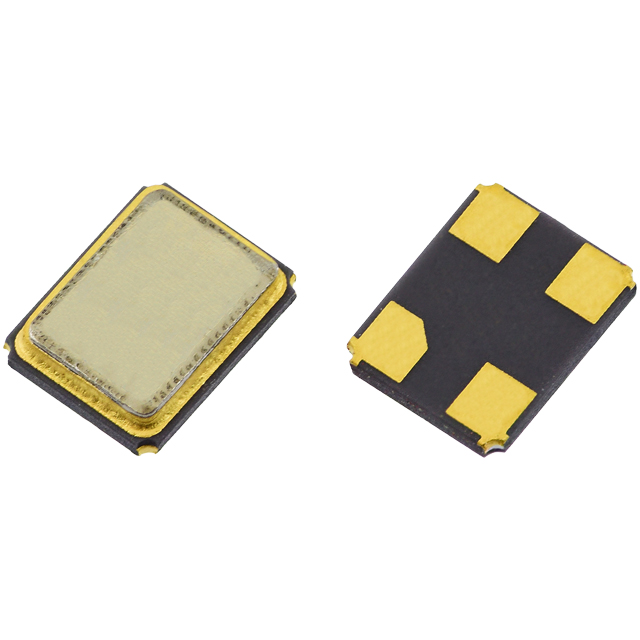

The MP05404 is a surface-mount crystal oscillator manufactured by Golledge Electronics Ltd. It operates at a nominal frequency of 16 MHz with an HCMOS output interface. The device supports a supply voltage of 5 V and functions within a temperature range of -40 °C to +85 °C. Key electrical parameters include a maximum rise and fall time of 10 ns, a duty cycle symmetry of 55/45 %, and an output load of 15 pF. The physical dimensions are 6.2 mm x 3.7 mm x 1.8 mm.

Crystals Feature Summary

• HCMOS output clock signal generation
• Tristate enable/disable functionality
• Surface mount package design

Crystals Applications

• General clock signal distribution in digital systems
• Embedded controller timing references
• Communication interface synchronization

Crystals Procurement Notes

Verify the specific frequency tolerance option code (A, B, or C) required for the application, as stability varies between ±100ppm, ±50ppm, and ±25ppm. Confirm the operating temperature grade matches the environmental requirements, distinguishing between the industrial (-40 to +85 °C) and commercial (-10 to +70 °C) ranges. Ensure the supply voltage aligns with the specified 5V nominal requirement.

Crystals Selection Notes

Select this component when a stable 16 MHz HCMOS clock source is needed for surface-mount assembly. Consider the tristate feature if system power management requires clock gating. Evaluate the thermal environment to ensure the selected temperature grade meets operational limits. Compare against other series options if different form factors or frequencies are required.

Crystals Part Context

This part belongs to the GXO-6451 series of HCMOS clock oscillators from Golledge Electronics. It provides a fixed-frequency solution for applications requiring precise timing without external components. The series offers various stability grades and temperature ranges to suit different industrial and commercial needs.

Crystals Replacement Considerations

Direct substitutes may include other 16 MHz HCMOS oscillators from the same manufacturer's GXO-6451 family with matching pinout and electrical specifications. Verify compatibility regarding supply voltage, output logic levels, and physical footprint before replacement.
