MP05483

Overview

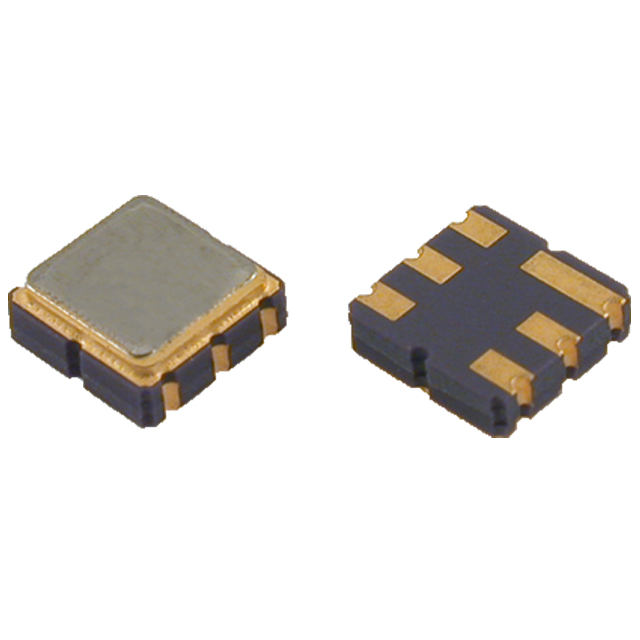

The MP05483 is a surface acoustic wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 412.5 MHz with a 3 dB bandwidth of 19 MHz. The device utilizes a 6-SMD, no-lead package configuration designed for surface mount assembly. This component functions as a general-purpose RF filter intended for signal processing applications within radio frequency circuits.

Feature Summary

• Surface acoustic wave technology implementation
• General-purpose RF filtering capability
• Compact surface mount construction

Applications

• Radio frequency signal processing
• Communication system filtering
• RF circuit integration

Procurement Notes

Verify the specific part number MP05483 against official Golledge Electronics documentation to confirm current availability and exact specifications. Ensure compatibility with target RF circuit requirements before procurement. Confirm package type and electrical parameters match design needs.

Selection Notes

Select this component based on the required 412.5 MHz center frequency and 19 MHz bandwidth specifications. Evaluate the 6-SMD no-lead package suitability for the intended PCB layout and assembly process. Consider the general-purpose nature of the filter for broad RF application compatibility.

Part Context

This SAW filter belongs to Golledge Electronics Ltd's portfolio of frequency-control and RF components. The manufacturer specializes in crystals, oscillators, and filters for various electronic applications. The MP05483 represents their surface acoustic wave technology offerings for RF signal management.
