MP05766

Oscillators Overview

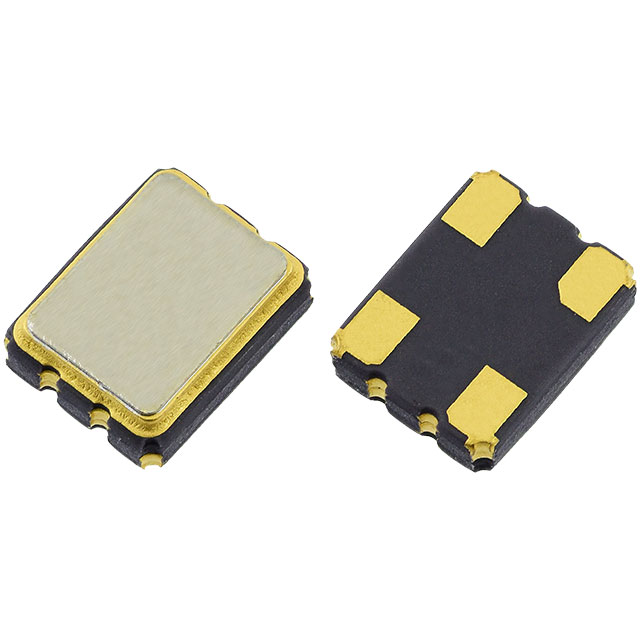

MP05766 is a temperature-compensated crystal oscillator (TCXO) manufactured by Golledge Electronics Ltd. It operates at a nominal frequency of 14.4 MHz and utilizes a clipped sine wave output format. The component is designed for surface-mount installation in a compact 4-SMD, no-lead package configuration. It functions with a supply voltage of 3V, providing stable clock signals suitable for precision timing applications within electronic circuits.

Oscillators Feature Summary

• Temperature compensation ensures frequency stability across varying thermal conditions
• Clipped sine wave output provides defined signal transitions
• Compact surface-mount footprint facilitates automated assembly

Oscillators Applications

• Embedded systems requiring precise clock references
• Industrial automation control units
• General electronics timing circuits

Oscillators Procurement Notes

Verify the specific output waveform and load requirements against the target circuit design before integration. Confirm that the 3V supply voltage aligns with the system power rails. Ensure the surface-mount package dimensions fit the designated PCB land pattern to guarantee proper soldering and mechanical retention during operation.

Oscillators Selection Notes

Select this component when a stable 14.4 MHz reference is required in space-constrained designs. The TCXO architecture offers better performance than standard oscillators in environments with temperature fluctuations. Consider the clipped sine wave output compatibility with downstream logic or amplifier stages to ensure signal integrity without additional conditioning.

Oscillators Part Context

The MP05766 belongs to the oscillator category from Golledge Electronics Ltd, specifically within their temperature-compensated series. This model complements other frequency sources like the GXO and GSX families by offering enhanced stability through internal compensation mechanisms while maintaining a small physical profile for modern high-density board layouts.

Oscillators FAQ

What is the output waveform type?

The MP05766 generates a clipped sine wave output.

What is the operating supply voltage?

The device requires a 3V supply voltage for operation.
