MP06762

Overview

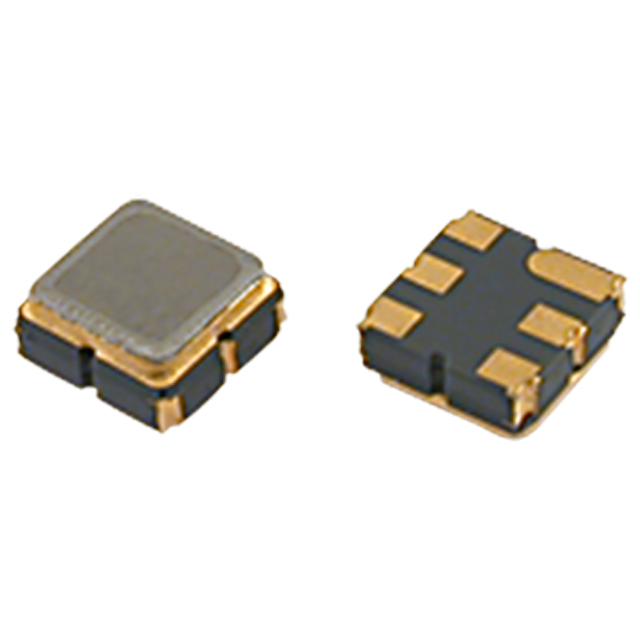

The MP06762 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 1650.50MHz. The device is designed for radio frequency signal processing applications. Maximum ratings include an input power level of 16dBm and a DC voltage limit of 3V. The component supports an operating temperature range from -40°C to +85°C. It is classified as an electrostatic sensitive device requiring appropriate handling precautions during assembly and use.

Feature Summary

• Provides RF filtering functionality at the 1650.50MHz frequency point
• Engineered to withstand high input power levels up to 16dBm
• Capable of operation across extended industrial temperature ranges

Applications

• RF front-end filtering in wireless communication modules
• Signal conditioning in cellular infrastructure equipment
• Frequency selection in mobile handset transceivers

Procurement Notes

Verify the specific datasheet revision, as indicated by Rev No: 2 in available documentation. Confirm that the procurement source provides the correct manufacturer identification for Golledge Electronics Ltd. Ensure handling procedures account for the Electrostatic Sensitive Device classification. Validate that the application circuit respects the maximum DC voltage and input power limits specified in the official component parameters.

Selection Notes

Select this component when a SAW filter is required specifically at 1650.50MHz. Consider the 16dBm input power capability if the application involves high signal strength environments. Verify compatibility with the -40°C to +85°C operating temperature range for the intended deployment environment. Ensure the design accommodates the electrostatic sensitivity requirements associated with this device type.

Part Context

This part belongs to the category of passive RF components, specifically SAW filters. It is distinct from quartz crystals and oscillators also produced by Golledge Electronics, such as the GSX series or GRX series. Unlike resonant elements that generate frequencies, this filter selects or rejects specific frequency bands within the RF spectrum.
