MP06967

Overview

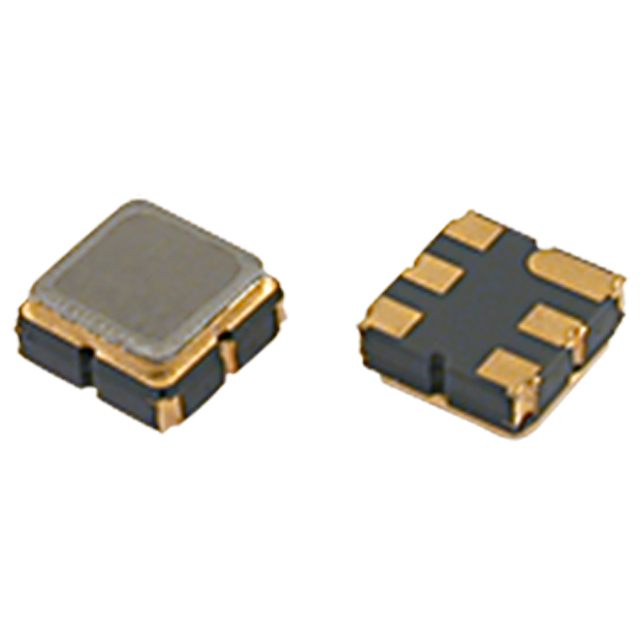

MP06967 is a parallel fundamental quartz crystal manufactured by Golledge Electronics Ltd. It operates at a nominal frequency of 15.99 MHz with a calibration tolerance of ±10 ppm and a load capacitance of 20 pF. The component features a drive level of 10 µW, aging of 1 ppm per first year, and a series resistance of 45 Ω. It utilizes an ultra-miniature ceramic package measuring 5.1 mm x 3.3 mm x 0.9 mm. The device supports surface mount installation and functions within a temperature range of -30 °C to +80 °C.

Feature Summary

• Ultra-miniature surface-mount ceramic construction for compact circuit integration
• High stability performance with low aging rate and precise frequency calibration
• Low drive level operation suitable for sensitive oscillator circuits

Applications

• Wireless communication modules requiring stable clock references
• Microcontroller system timing applications
• Portable electronic devices with space constraints

Procurement Notes

Verify the specific option codes against the GSX-533 datasheet to ensure correct frequency tolerance and temperature range. Confirm RoHS compliance status and packaging format requirements before ordering. Cross-reference the manufacturer part number with distributor codes to avoid selection errors.

Selection Notes

Select this component when a 15.99 MHz reference is required in an ultra-miniature footprint. Ensure the application circuit matches the 20 pF load capacitance specification. Verify that the operating environment stays within the specified temperature limits for optimal frequency stability.

Part Context

This part belongs to the GSX-533 family of surface-mount crystals designed for wireless applications. The series offers various frequency options within the 8.0 MHz to 54.0 MHz range. The GSX-533 line emphasizes miniaturization while maintaining high reliability standards for consumer and industrial electronics.

Replacement Considerations

Direct substitutes must match the 15.99 MHz frequency, 20 pF load capacitance, and 5.1x3.3x0.9 mm dimensions. Verify equivalent aging and stability specifications from alternative manufacturers.
