MP06992

Overview

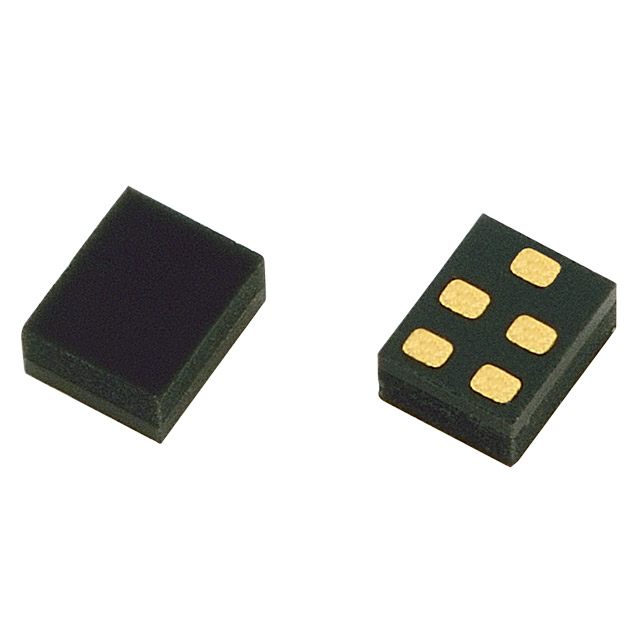

The MP06992 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a central frequency of 915.0 MHz with a signal bandwidth of 26 MHz. The device features an insertion loss of 2.5 dB and is housed in a compact 5-SMD, no-lead package. Maximum physical dimensions include a height of 0.70 mm. Electrical ratings specify a maximum input power level of 10 dBm and a DC voltage limit of 3V. The component supports an operating temperature range from -40°C to +85°C.

Feature Summary

• Utilizes Surface Acoustic Wave technology for RF filtering applications
• Optimized for 915 MHz ISM band operations
• Designed for automated surface-mount assembly processes

Applications

• Wireless sensor networks
• Industrial, Scientific, and Medical (ISM) equipment
• Remote control systems

Procurement Notes

Verify the specific datasheet revision number, as documentation indicates Rev No: 5. Confirm that the required operating environment remains within the specified -40°C to +85°C range. Ensure circuit design respects the 10 dBm maximum input power and 3V DC voltage limits to prevent device damage. Validate compatibility with standard pick-and-place assembly equipment due to the 5-SMD no-lead package format.

Selection Notes

Select this component when a narrow-band filter is required for the 915 MHz frequency range. The 26 MHz bandwidth provides sufficient selectivity for many wireless protocols. Consider the low profile and small footprint for space-constrained designs. Verify that the 2.5 dB insertion loss meets system link budget requirements compared to alternative technologies.

Part Context

This part belongs to the GSRF series of SAW filters produced by Golledge Electronics Ltd. The manufacturer specializes in RF components for communication systems. The GSX series mentioned in general knowledge refers to quartz crystals, which are distinct active/passive timing devices unrelated to the MP06992 filtering function.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
