MP07387

Overview

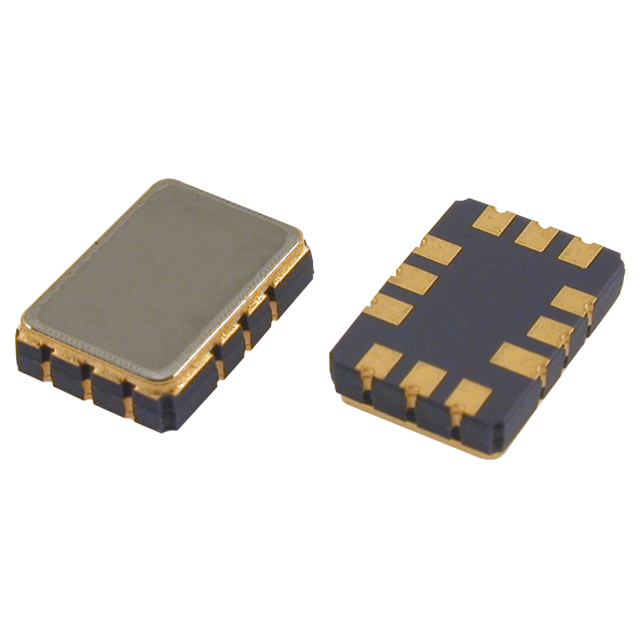

The MP07387 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 156.525 MHz and provides an insertion loss of 6 dB with a bandwidth of 25 kHz. The component utilizes a 10-SMD, No Lead package configuration for surface mount assembly.

Feature Summary

• Utilizes Surface Acoustic Wave technology for signal filtering
• Designed for intermediate frequency applications in RF systems

Applications

• RF intermediate frequency filtering
• Wireless communication equipment
• Signal processing modules

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Golledge Electronics Ltd or authorized distributors before procurement. Confirm that the 10-SMD no-lead package dimensions match your PCB footprint requirements. Ensure the 156.525 MHz center frequency aligns with your system design specifications to avoid performance degradation.

Selection Notes

Select this component when a narrow 25 kHz bandwidth is required at 156.525 MHz. Consider the 6 dB insertion loss impact on system gain. Evaluate the SMD package suitability for automated assembly processes compared to through-hole alternatives.

Part Context

This SAW filter belongs to Golledge Electronics' range of RF components, which includes quartz crystals, oscillators, and filters. It serves as a specialized passive element for frequency selection in electronic circuits requiring precise intermediate frequency handling.

Replacement Considerations

No public substitute part numbers are documented. Verify compatibility with existing circuit designs if considering alternative SAW filters from other manufacturers.
