MP07497

Overview

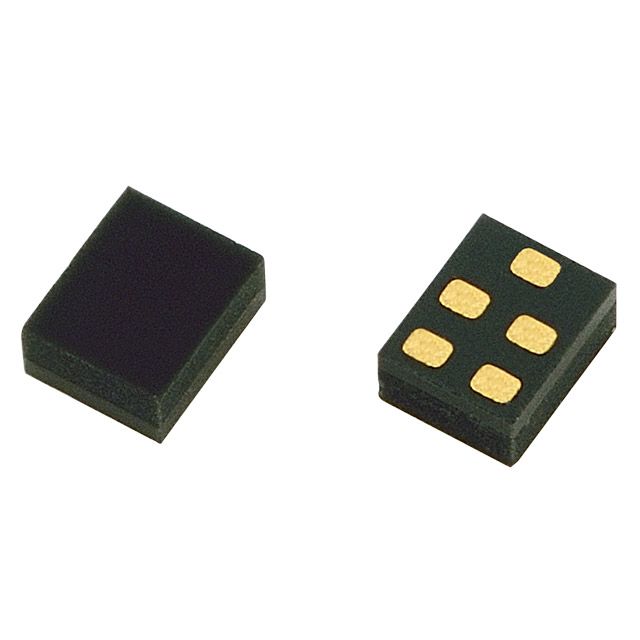

The MP07497 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd, operating at a center frequency of 2410.0 MHz. It belongs to the GSRF series and is designed for WiFi applications. The component features a bandwidth of 20MHz and exhibits an insertion loss of 6.5dB. Its physical dimensions are 1.40mm in length and 1.10mm in width, corresponding to a footprint of 0.055 inches by 0.043 inches.

Feature Summary

• Surface Acoustic Wave technology for RF signal filtering
• Optimized for WiFi band operation
• Compact surface-mount package design

Applications

• WiFi communication systems
• RF front-end modules
• Wireless network equipment

Procurement Notes

Verify the specific ordering suffix against official Golledge Electronics documentation to ensure correct pinout and electrical characteristics. Confirm RoHS compliance status as required by project specifications. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current product status before procurement.

Selection Notes

Select this component when a SAW filter with a 2410 MHz center frequency and 20 MHz bandwidth is required for WiFi applications. Ensure the PCB layout accommodates the 1.40mm x 1.10mm package dimensions. Consider the 6.5dB insertion loss impact on system link budget during circuit design.

Part Context

This component is part of the GSRF series from Golledge Electronics Ltd, which specializes in RF filters. The MP07497 is distinct from other Golledge products like the HC49J quartz crystals or TA0762A SAW filters due to its specific 2410 MHz frequency target and WiFi application focus.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with any alternative components through detailed electrical parameter matching and mechanical footprint analysis.
