MP07513

Overview

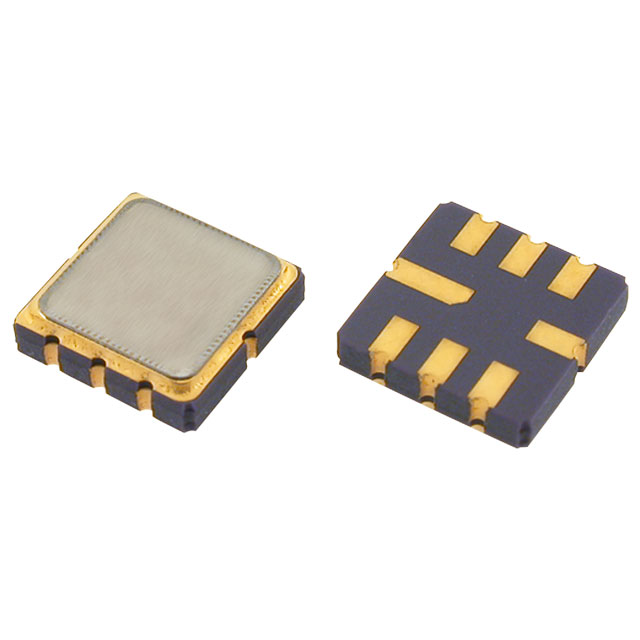

The MP07513 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 1.1918 GHz with a bandwidth of 55 MHz and an insertion loss of 4 dB. The component is housed in a compact 6-SMD, No Lead package designed for surface mount applications.

Feature Summary

• Utilizes Surface Acoustic Wave technology for RF signal processing
• Designed for high-frequency operation at 1.1918 GHz
• Compact surface mount form factor suitable for space-constrained designs

Applications

• RF front-end filtering in wireless communication systems
• Signal conditioning in cellular infrastructure modules
• Frequency selection in high-frequency transceiver circuits

Procurement Notes

Verify the specific datasheet revision and mechanical drawing dimensions prior to integration. Confirm that the 6-SMD no-lead package footprint matches the target PCB layout. Ensure the operating environment supports the specified center frequency and bandwidth requirements for optimal signal integrity.

Selection Notes

Select this component when a SAW filter topology is required for the 1.1918 GHz band. Consider the 4 dB insertion loss impact on system gain budget. Evaluate the 55 MHz bandwidth against adjacent channel interference requirements. Compare physical size constraints against alternative filter technologies available from the manufacturer.

Part Context

This part belongs to the GSRF series of radio frequency components produced by Golledge Electronics Ltd. The company specializes in quartz crystals, oscillators, and RF filters. The MP07513 represents a specialized active component within their portfolio, distinct from their passive crystal offerings.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer directly for cross-reference information or equivalent alternatives.
