MP08747

Overview

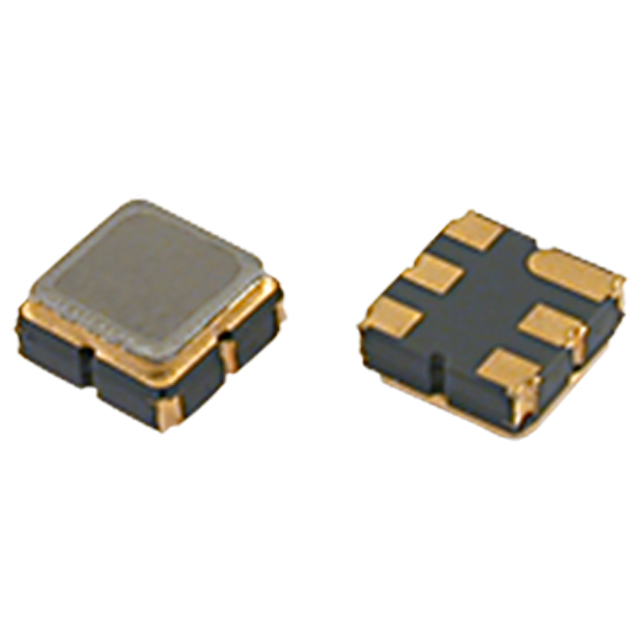

MP08747 is a parallel fundamental quartz crystal manufactured by Golledge Electronics Ltd. It operates at a nominal frequency of 32 MHz with a calibration tolerance of ±15 ppm and an equivalent series resistance (ESR) rated at 60 Ohms. The component utilizes surface mount technology within a ceramic package configuration. It complies with RoHS standards, ensuring environmental safety for electronic assemblies. This device is designed to provide stable frequency control in precision applications requiring reliable oscillation characteristics.

Feature Summary

• Surface mount ceramic package construction
• Parallel fundamental quartz crystal operation
• RoHS compliant manufacturing process

Applications

• Precision timing circuits
• Frequency control systems
• Electronic oscillator modules

Procurement Notes

Verify the specific load capacitance and operating temperature range requirements against your circuit design before procurement. Confirm that the ±15 ppm stability rating meets your system's tolerance needs. Ensure the 60 Ohm ESR is compatible with your oscillator driver circuit to guarantee proper startup and sustained oscillation without excessive power dissipation or frequency pulling issues.

Selection Notes

Select this component when a 32 MHz reference is required with moderate stability. Consider the 60 Ohm ESR limit for oscillator compatibility. Evaluate if the standard ceramic package dimensions fit your PCB layout constraints compared to other ultra-miniature options in the Golledge portfolio.

Part Context

This part belongs to the Golledge Electronics product line, which specializes in precision quartz crystals covering frequencies from 30 kHz to 315 MHz. The manufacturer provides various frequency control solutions including oscillators and resonators for diverse industrial and commercial applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
