MP08759

Overview

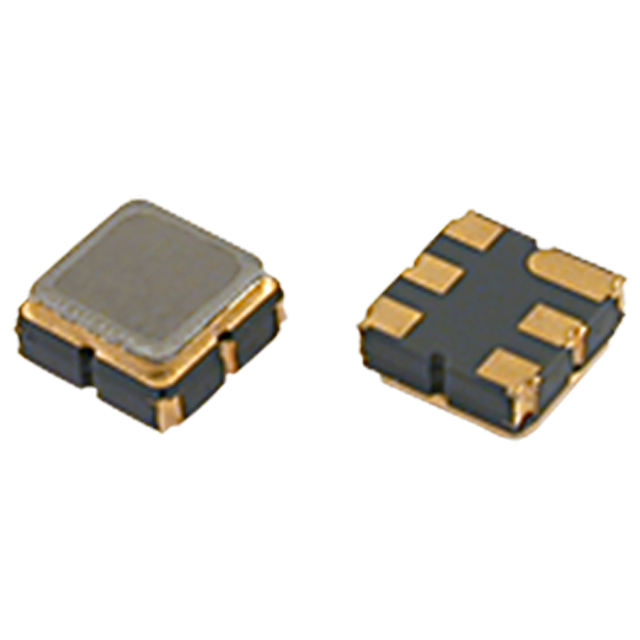

The MP08759 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 2.14 GHz with a bandwidth of 60 MHz. The device features an insertion loss of 2.1 dB and is housed in a compact 6-SMD, No Lead package.

Feature Summary

• Utilizes Surface Acoustic Wave technology for RF signal filtering
• Designed for general-purpose applications within the specified frequency range

Applications

• General purpose RF signal processing
• Wireless communication systems operating near 2.14 GHz

Procurement Notes

Verify the specific datasheet revision and mechanical dimensions against your PCB layout requirements. Confirm that the 6-SMD no-lead package style matches your assembly capabilities. Ensure the component meets all relevant environmental compliance standards required for your final product integration.

Selection Notes

Select this component when a SAW filter is required for the 2.14 GHz band with moderate insertion loss. Consider the 60 MHz bandwidth to ensure it aligns with your system's signal spectrum needs. Evaluate the surface mount package suitability for your manufacturing process.

Part Context

This part belongs to Golledge Electronics' portfolio of radio frequency components. It complements other SAW filters in their lineup, such as those operating at different frequencies like 460 MHz, providing options for various RF front-end designs.
