MP08826

Overview

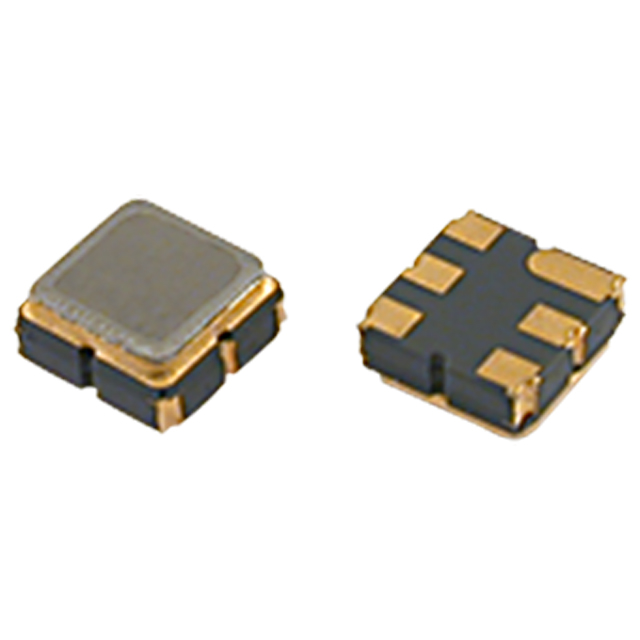

The MP08826 is a surface-mount RF SAW filter from Golledge Electronics, designed for LTE applications. It operates at a center frequency of 1227.0 MHz with a bandwidth of 20 MHz and an insertion loss of 2.2 dB. The component utilizes a compact 6-SMD no-lead package measuring 3.00 mm x 3.00 mm. It is RoHS compliant.

Feature Summary

• Surface acoustic wave technology for RF filtering
• Compact 6-SMD no-lead package design
• RoHS compliant construction

Applications

• LTE systems
• RF front-end modules
• Wireless communication devices

Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and pinout configurations. Ensure the selected package variant matches the required PCB footprint dimensions. Confirm RoHS compliance status if restricted substances are a project constraint. Cross-reference the manufacturer's latest documentation for any updates to the operating specifications or recommended soldering profiles.

Selection Notes

Select this component when a low-profile SAW filter is required for LTE band operations around 1227 MHz. The 2.2 dB insertion loss offers a balance between signal attenuation and power efficiency. The 3x3 mm package size is suitable for space-constrained mobile designs. Consider thermal management requirements during layout due to the surface-mount nature.

Part Context

This part belongs to the GSRF series of RF SAW filters manufactured by Golledge Electronics Ltd. These components are engineered for high-frequency signal processing in modern wireless infrastructure and portable devices. The series emphasizes miniaturization and reliable performance in demanding RF environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
