MP09362

Overview

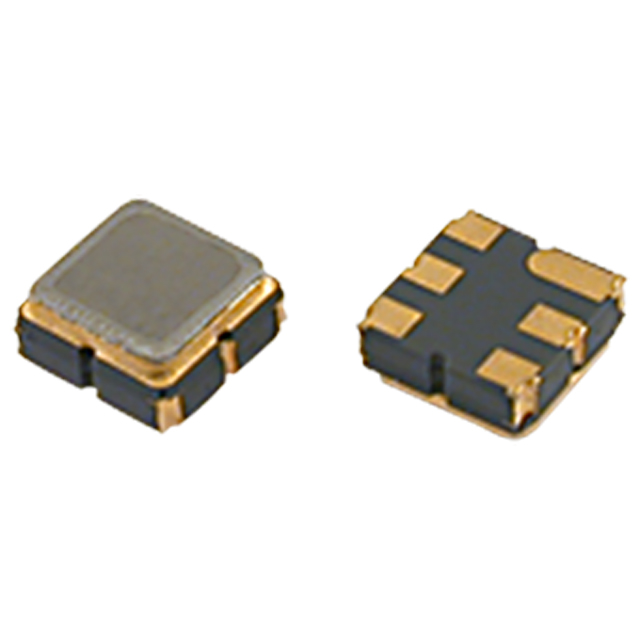

The MP09362 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd. It operates at a center frequency of 1.26 GHz with a bandwidth of 96 MHz. The component provides an insertion loss of 4.5 dB and is housed in a compact 6-SMD, No Lead package. Designed for general-purpose RF applications, it supports surface mount assembly and functions within standard industrial temperature ranges.

Feature Summary

• Utilizes Surface Acoustic Wave technology for efficient signal filtering
• Optimized for high-frequency RF circuit integration
• Compact surface-mount footprint suitable for space-constrained designs

Applications

• General purpose RF signal processing
• Wireless communication transceivers
• RF front-end modules requiring bandpass filtering

Procurement Notes

Verify the specific datasheet version and mechanical dimensions prior to procurement. Confirm that the 6-SMD package outline matches the target PCB layout. Ensure the operating frequency range aligns with system requirements. Check compliance documentation for RoHS and lead-free status as indicated in official specifications.

Selection Notes

Select this component when a 1.26 GHz SAW filter is required for general RF applications. Consider the 96 MHz bandwidth and 4.5 dB insertion loss against system link budget constraints. Evaluate the 6-SMD package size for compatibility with existing assembly processes and board real estate limitations.

Part Context

Golledge Electronics Ltd specializes in frequency control and RF components. The MP09362 belongs to their SAW filter series, which includes various models for different frequency bands. This product line supports industries requiring reliable passive RF filtering solutions for modern electronic devices.
