MP09815

Overview

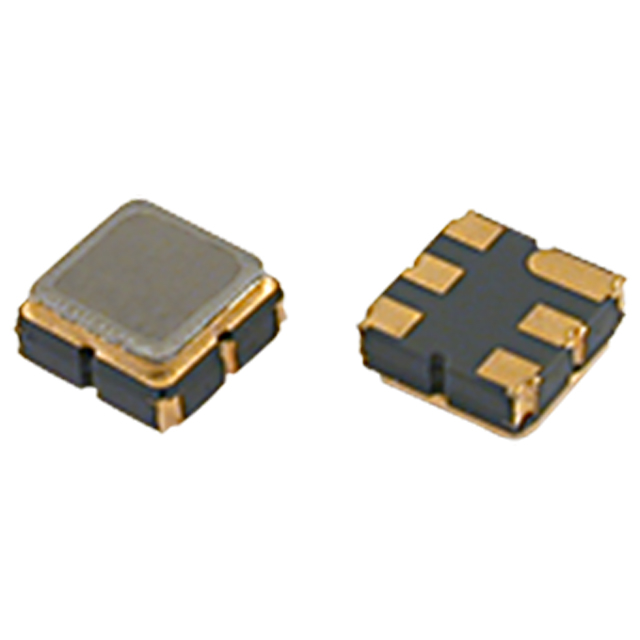

The MP09815 is a Surface Acoustic Wave (SAW) filter manufactured by Golledge Electronics Ltd, designed for wireless RF applications at 869.0 MHz. It features a 3dB insertion loss and a 2MHz bandwidth. The component utilizes a TA1404A SAW technology and is housed in a compact 6-SMD, No Lead package suitable for surface mount assembly.

Feature Summary

• Utilizes Surface Acoustic Wave technology for efficient signal filtering
• Optimized for specific frequency band operations
• Designed for compact surface mount integration

Applications

• Wireless RF communication systems
• Signal filtering in transceiver modules
• Frequency selection in base station equipment

Procurement Notes

Verify the exact datasheet specifications against the manufacturer's official documentation to ensure compatibility with your circuit design. Confirm that the 6-SMD package dimensions match your PCB footprint requirements. Ensure the supplier provides traceability documents confirming the component origin and authenticity prior to purchase.

Selection Notes

Select this component when a narrow 2MHz bandwidth is required at 869.0 MHz. Consider the 3dB insertion loss impact on system sensitivity. Verify that the TA1404A SAW type meets the thermal and environmental constraints of the target application environment.

Part Context

This part belongs to Golledge Electronics Ltd's range of RF SAW filters. These components are engineered for high-frequency signal processing in wireless infrastructure. The MP09815 specifically targets the 869 MHz ISM band or similar regional allocations requiring precise frequency discrimination.

FAQ

What is the operating frequency of the MP09815?

The MP09815 operates at a center frequency of 869.0 MHz.

What is the bandwidth specification?

The component has a specified bandwidth of 2MHz.
