MP11473

Overview

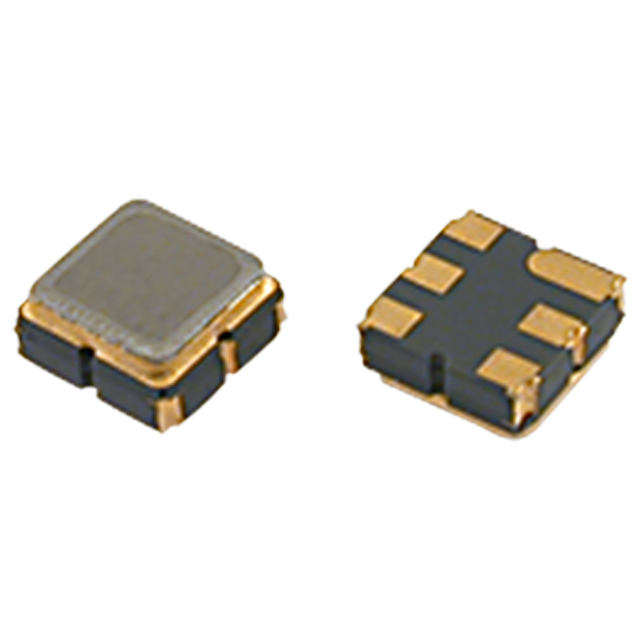

MP11473 is a surface-mount RF filter component manufactured by Golledge Electronics Ltd. It operates at a central frequency of 1.20950 GHz with an insertion loss of 3.6 dB. The device features a maximum height of 0.055 inches (1.40 mm), ensuring compliance with low-profile design standards for modern electronic assemblies.

Feature Summary

• Designed as an RF filter for high-frequency signal processing applications
• Low profile construction with a maximum height of 1.40 mm
• Provides defined insertion loss characteristics for signal attenuation

Applications

• RF front-end modules in wireless communication systems
• Signal filtering in cellular infrastructure equipment
• Frequency selection in mobile terminal hardware

Procurement Notes

Verify the exact electrical specifications and mechanical dimensions against the official Golledge Electronics datasheet prior to procurement. Confirm that the component meets all required regulatory standards for your specific application environment. Ensure compatibility with your manufacturing process regarding the surface mount package type.

Selection Notes

Select this component when a low-profile RF filter is required at approximately 1.2 GHz. Consider the 3.6 dB insertion loss value in relation to system power budgets. The 1.40 mm height constraint makes it suitable for space-sensitive designs where standard-height components cannot be accommodated.

Part Context

Golledge Electronics Ltd specializes in frequency control solutions, including quartz crystals, oscillators, and RF filters. The MP11473 belongs to their range of passive RF components designed for precise signal management in demanding electronic environments.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Consult manufacturer documentation for potential alternatives.
