MP1911GTL-P

Overview

The MP1911GTL-P is a half-bridge gate driver manufactured by Monolithic Power Systems. It operates within a supply voltage range of 2.5 V to 16 V and delivers a peak output current of 1 A. The device supports IGBT and N-channel MOSFETs, featuring non-inverting logic inputs with thresholds of 0.4 V and 1.1 V. Typical rise and fall times are 220 ns and 170 ns, respectively. It functions reliably across an operating temperature range of -40°C to +125°C and is housed in an SOT-583 package.

Feature Summary

• Integrates a half-bridge driver configuration for controlling high-side and low-side power switches.
• Supports direct drive for both IGBTs and N-channel MOSFETs.
• Features non-inverting input logic compatible with standard digital control signals.

Applications

• Solenoid valve drivers
• High-frequency switching applications requiring half-bridge topology

Procurement Notes

Verify the specific suffix (P vs Z) against the official datasheet to confirm packaging type, as this affects reel quantities and handling requirements. Confirm RoHS compliance status directly from the manufacturer's documentation before finalizing procurement specifications.

Selection Notes

Select this component when a compact half-bridge solution is required for driving IGBTs or MOSFETs with moderate current demands. Ensure the system supply voltage remains within the 2.5 V to 16 V range and that the thermal environment stays within the specified -40°C to +125°C operational limits.

Part Context

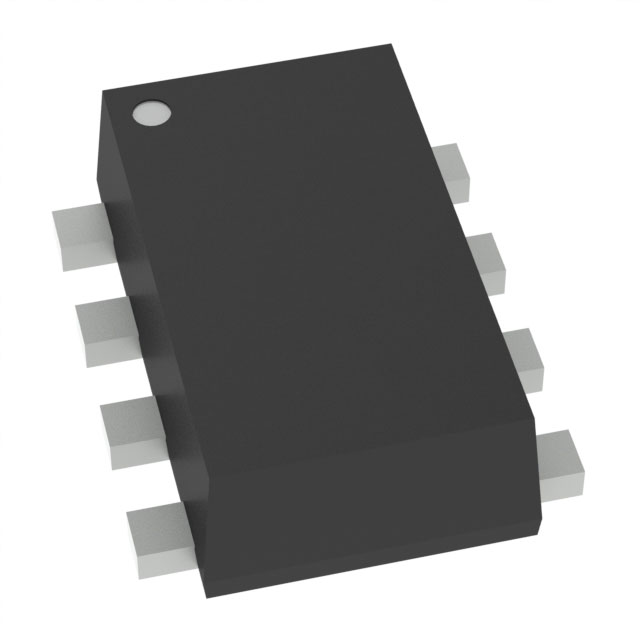

This part belongs to the MPS gate driver family designed for power management integrated circuits. It utilizes silicon technology and is categorized under PMIC solutions. The SOT-583 package allows for surface-mount installation, supporting automated assembly processes in compact electronic designs.

Replacement Considerations

MP1911GTL-Z is documented as a direct substitute offering identical electrical characteristics with potential differences in packaging format.
