MP2384CGG-Z

Voltage Regulators - DC DC Switching Regulators Overview

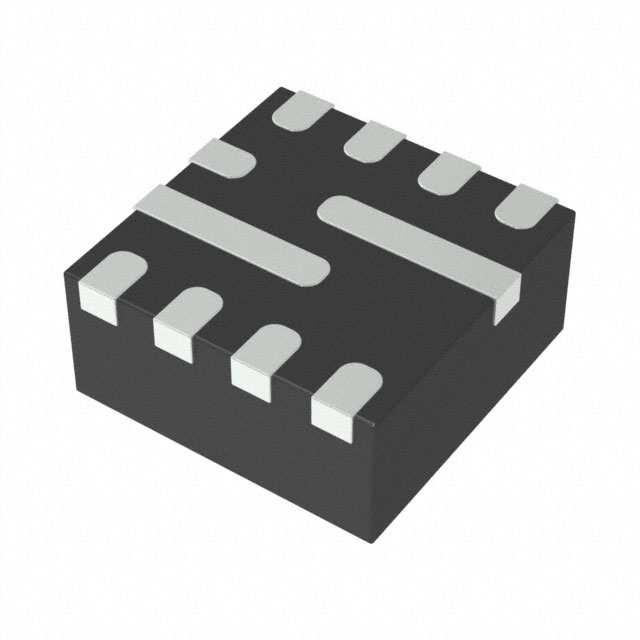

The MP2384CGG-Z is a synchronous buck converter from Monolithic Power Systems, housed in an 11-VFQFN package. It operates with an input voltage range of 4.5 V to 24 V and delivers up to 4 A output current. The adjustable output voltage spans from 0.6 V to 13 V at a fixed switching frequency of 700 kHz. Quiescent current is specified at 105 uA, supporting low-power standby modes. The device functions within a junction temperature range of -40°C to +125°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Integrates synchronous rectification for high efficiency across load ranges
• Employs forced continuous conduction mode (CCM) for stable operation under light loads
• Includes comprehensive protection mechanisms such as over-current, over-voltage, and thermal shutdown

Voltage Regulators - DC DC Switching Regulators Applications

• Point-of-load regulation for embedded systems
• Power distribution networks in industrial equipment
• Battery-powered portable devices requiring efficient step-down conversion

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix 'Z' indicates RoHS compliance and halogen-free status according to manufacturer declarations. Confirm the 11-QFN package dimensions match your PCB footprint requirements. Ensure the ordering quantity aligns with standard reel or cut-tape availability constraints defined by the supplier.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a compact solution is required for 24V input systems needing 4A capacity. The 700kHz frequency allows for smaller external inductors compared to lower-frequency alternatives. Consider the 105uA quiescent current if battery life optimization is critical for the target application environment.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the MP2384 series of synchronous buck converters designed for general-purpose power management. It shares architectural similarities with other MPS parts like the MP2380 but offers higher current capability in a similar small form factor. The CGG variant specifically denotes the QFN-11 packaging configuration.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

MP2384CGG-P is a direct pin-compatible alternative differing primarily in packaging tape type rather than electrical function.
