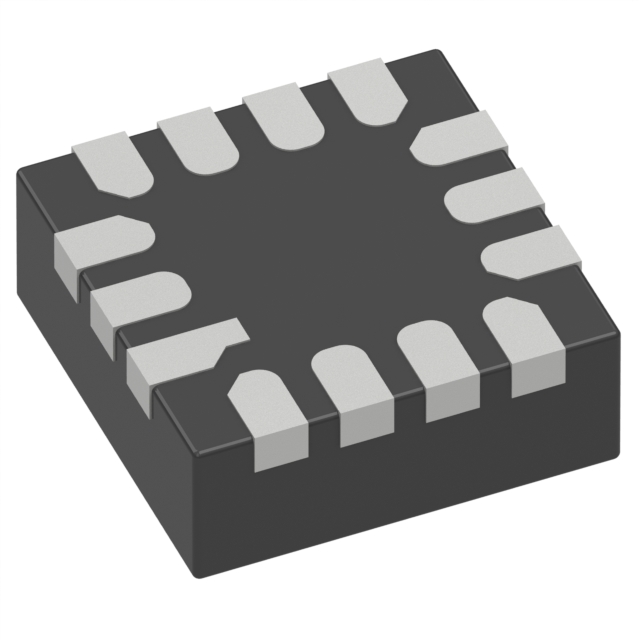

MP3320NGG-P

$2.69

Description：3 CHANNELS, CHARGE PUMP RGB LED
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4685b82d022f Category: LED Drivers IC Brand: Monolithic Power Systems Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MP3320NGG-P is listed in the LED Driver IC range at ChipApex. The manufacturer field lists Monolithic Power Systems Inc.. Its product description is 3 CHANNELS, CHARGE PUMP RGB LED. Review the specifications below when checking this part for your BOM.

LED Driver IC specifications for MP3320NGG-P

Description：3 CHANNELS, CHARGE PUMP RGB LED
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Type：DC DC Regulator
Topology：Switched Capacitor (Charge Pump)
Internal Switch(s)：Yes
Number of Outputs：4
Voltage - Supply (Min)：1.8V
Voltage - Supply (Max)：5.5V
Voltage - Output：5.5V
Current - Output / Channel：100mA
Frequency：1MHz
Dimming：Analog, I2C, PWM
Applications：General Purpose
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Package / Case：14-VFQFN
Supplier Device Package：14-QFN (2x2)
Grade：-
Qualification：-

LED Driver IC datasheet and documents for MP3320NGG-P

MP3320NGG-P

LED Driver IC Overview

The MP3320NGG-P is a 3-channel RGB LED driver IC from Monolithic Power Systems. It features an integrated self-adaptive charge pump with a maximum output voltage of 5.5V and supports input voltages from 1.8V to 5.5V. Each channel delivers up to 100mA of current. The device operates at a switching frequency of 1MHz and offers separated PWM dimming for each channel. It includes protection mechanisms such as LED open/short detection, over-voltage protection (OVP), and over-temperature protection (OTP). The component is housed in a QFN-14 package.

LED Driver IC Feature Summary

Integrates a self-adaptive charge pump block for efficient power conversion
Supports separated Pulse Width Modulation (PWM) dimming for individual channels
Includes comprehensive protection features like OVP, OTP, and LED fault detection

LED Driver IC Applications

Wearable devices
LED indicators
Smart and intelligent devices

LED Driver IC Procurement Notes

Verify the specific suffix 'P' against the manufacturer's official documentation to confirm packaging configuration and availability status. Ensure that the selected variant matches the required thermal and electrical specifications for the target application environment. Cross-reference the datasheet revision history to validate parameter consistency before finalizing procurement orders.

LED Driver IC Selection Notes

Select this component for applications requiring compact RGB lighting solutions with low input voltage compatibility. The integrated charge pump eliminates external inductors, reducing board space requirements. Consider the 100mA per channel limit when designing for high-brightness LEDs. Verify that the operating temperature range aligns with the environmental conditions of the end product.

LED Driver IC Part Context

This part belongs to the MP3320N series of RGB LED drivers designed by Monolithic Power Systems. The series focuses on high-efficiency driving for small form-factor electronics. The MP3320NGG-P specifically denotes the package type and pinout configuration within this family, distinguishing it from other variants in terms of physical dimensions and thermal performance characteristics.
