MP3352DQ-LF-Z

Overview

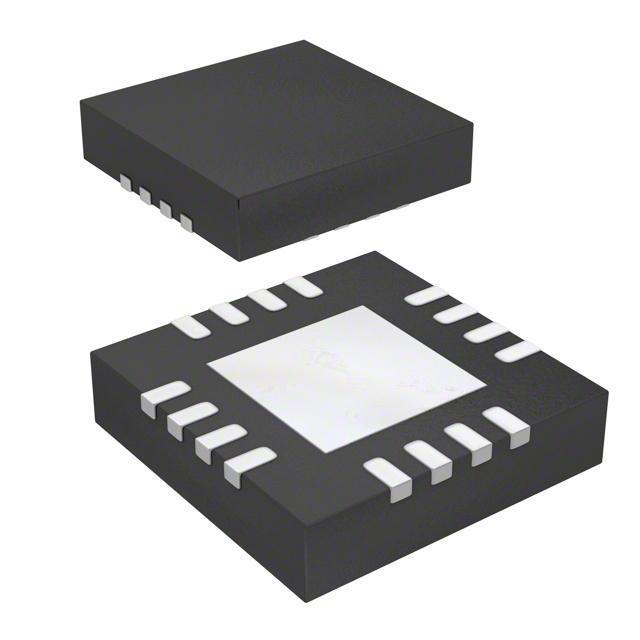

The MP3352DQ-LF-Z is a high-voltage xenon flash charger featuring an integrated IGBT driver. It operates with a supply voltage range of 3 V to 6 V and supports output currents up to 2.5 A. The device functions within a temperature range of -40°C to +85°C and is housed in a QFN-16 package.

Feature Summary

• Integrates an IGBT driver for direct control of xenon flash tubes
• Provides fast charging capabilities for photo-flash applications
• Ensures precision regulation for consistent flash performance

Applications

• Xenon flash tube charging
• Camera module power management
• Mobile device photography systems

Procurement Notes

Verify the NRND status, as this component is not recommended for new designs. Confirm the specific suffix (LF-Z) matches the required RoHS compliance and reel packaging specifications. Cross-reference the datasheet revision to ensure compatibility with current design requirements before finalizing procurement.

Selection Notes

Select this part for applications requiring a compact solution for xenon flash charging. Ensure the input voltage stays within the 3 V to 6 V range. Consider the thermal performance of the QFN-16 package under continuous operation. Verify that the 2.5 A output capability meets the peak current demands of the target flash tube.

Part Context

This component belongs to the MP3352 series from Monolithic Power Systems. It is designed specifically for high-efficiency, high-voltage charging tasks in portable electronics. The series focuses on integrating power stages and control logic to minimize external component count.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
