MP4573GQBE-P

Voltage Regulators - DC DC Switching Regulators Overview

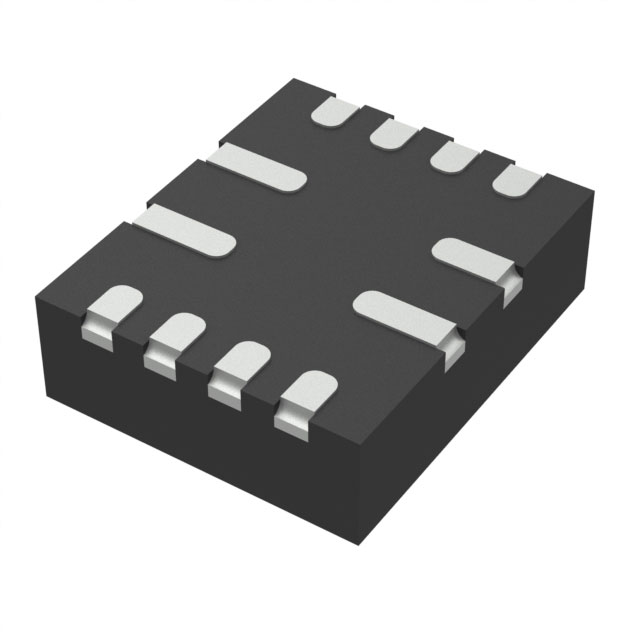

The MP4573GQBE-P is a fully integrated, high-efficiency synchronous step-down converter from Monolithic Power Systems. It supports an input voltage range of 4.5 V to 60 V and delivers up to 2.5 A of output current. The device features a fixed switching frequency of 2.2 MHz and operates within a temperature range of -40°C to +150°C. It is housed in a QFN-12 package and holds AEC-Q100 qualification for automotive applications.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• AEC-Q100 qualified for automotive reliability standards
• High efficiency synchronous buck topology
• Integrated power switches for compact design

Voltage Regulators - DC DC Switching Regulators Applications

• Automotive infotainment systems
• Telematics control units
• Body electronics modules

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix 'P' indicates the reel packaging configuration as documented by the manufacturer. Confirm that the component meets the required AEC-Q100 grade specifications for your target automotive application. Ensure compatibility with the QFN-12 footprint during PCB layout. Cross-reference the datasheet revision date to ensure all electrical characteristics align with your design requirements.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a wide input voltage range up to 60 V is required in a small form factor. The 2.2 MHz switching frequency allows for smaller external passive components compared to lower-frequency alternatives. The extended junction temperature rating of 150°C provides robustness in high-thermal environments typical of automotive under-hood or chassis-mounted locations.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the MP4573 series of synchronous step-down converters designed for demanding power management applications. It shares architectural similarities with other MPS automotive-grade regulators but is distinguished by its specific 60 V input capability and 2.5 A current rating. The series is engineered to meet stringent automotive quality and reliability standards.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Direct substitutes include MP4573GQBE-Z and MPQ4573GQBE-P, which share identical electrical specifications and pinouts. Verify that any replacement maintains the same AEC-Q100 qualification status and thermal performance characteristics.
