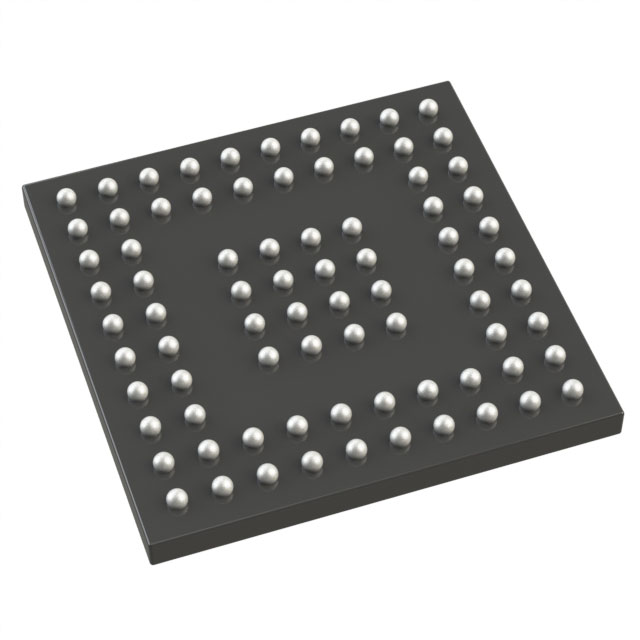

MP4833AGBN-T

$22.84

Description：IC SWITCH SPST-NOX32 19OHM 80BGA
Series：-

SKU:769ad2a88911 Category: Analog Switches, Multiplexers, Demultiplexers Brand: Monolithic Power Systems Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC SWITCH SPST-NOX32 19OHM 80BGA
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tray
Switch Circuit：SPST - NO
Multiplexer/Demultiplexer Circuit：1:01
On-State Resistance (Max)：19Ohm
Channel-to-Channel Matching (ΔRon)：950mOhm
Voltage - Supply, Single (V+)：9V ~ 10V
Voltage - Supply, Dual (V±)：-
Switch Time (Ton, Toff) (Max)：2µs, 2µs
-3db Bandwidth：-
Charge Injection：18pC
Channel Capacitance (CS(off), CD(off))：10pF
Current - Leakage (IS(off)) (Max)：-
Crosstalk：-60dB @ 5MHz
Operating Temperature：-25°C ~ 125°C
Mounting Type：Surface Mount
Package / Case：80-TFBGA
Supplier Device Package：80-BGA (7x7)
Number of Circuits：32
Grade：-
Qualification：-

Download product information

MP4833AGBN-T

Overview

The MP4833AGBN-T is a high-voltage analog switch integrated circuit manufactured by Monolithic Power Systems. It features 32 single-pole single-throw (SPST) channels with integrated output bleed resistors, designed for efficient multiplexing applications. The device operates within an input voltage range of 2.7 V to 5.5 V and supports signal voltages up to 125 V. It utilizes an 80-BGA package measuring 7x7 mm, suitable for surface-mount technology. The component ensures low on-resistance of 19 Ohms and functions reliably across an extended temperature range from -25°C to 125°C.

Feature Summary

Integrates 32 independent SPST analog switches with built-in bleed resistors for rapid discharge
Supports high-voltage signal switching capabilities up to 125 V
Operates on a wide supply voltage range from 2.7 V to 5.5 V
Engineered for robust performance in extended industrial temperature environments

Applications

Video signal multiplexing systems
High-density data acquisition circuits
Industrial control panel interfaces

Procurement Notes

Verify the specific suffix 'T' indicates tape-and-reel packaging configuration when sourcing. Confirm that the 80-BGA 7x7mm footprint matches your PCB layout constraints. Ensure thermal management strategies account for the operating temperature range of -25°C to 125°C during integration. Cross-reference the latest datasheet revision to confirm pinout compatibility with existing designs.

Selection Notes

Select this component when designing systems requiring high channel density for analog signal routing. The integrated bleed resistors simplify circuit design by eliminating external discharge components. Consider the 19 Ohm on-resistance for signal integrity requirements. The wide supply voltage range allows flexibility in power domain selection for various logic levels.

Part Context

This part belongs to the MP4833 family of analog switches from Monolithic Power Systems. It is distinct from other MPS products like the MP24833 LED driver or MP2633 battery charger. The MP4833 series focuses specifically on high-channel-count signal switching rather than power conversion or battery management functions.
