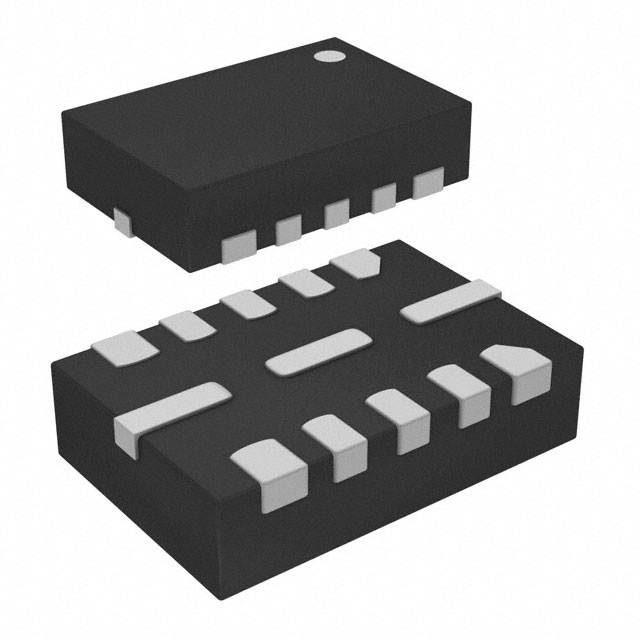

MP5017GD-Z

$0.48

Description：IC PWR SWITCH N-CHAN 1:1 12QFN
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR)

SKU:a721cd485dca Category: Power Distribution Switches, Load Drivers Brand: Monolithic Power Systems Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC PWR SWITCH N-CHAN 1:1 12QFN
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR)
Switch Type：General Purpose
Number of Outputs：1
Ratio - Input:Output：1:01
Output Configuration：High Side
Output Type：N-Channel
Interface：On/Off
Voltage - Load：3V ~ 5.5V
Voltage - Supply (Vcc/Vdd)：Not Required
Current - Output (Max)：5A
Rds On (Typ)：45mOhm
Input Type：-
Features：Slew Rate Controlled, Status Flag
Fault Protection：Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Supplier Device Package：12-QFN (2x3)
Package / Case：12-VFQFN Exposed Pad
Grade：-
Qualification：-

Download product information

MP5017GD-Z

Overview

The MP5017GD-Z is a single-channel power distribution switch IC from Monolithic Power Systems, housed in a QFN-12 package. It operates within a supply voltage range of 3 V to 5.5 V and supports an output current of 5 A with a fixed current limit of 2.4 A. The device features a maximum on-resistance of 45 mOhms and a maximum turn-on time of 160 us. It functions reliably across an extended temperature range from -40 C to +125 C.

Feature Summary

Integrates reverse current blocking to prevent backflow into the power source.
Provides fixed current limiting protection against overload conditions.
Features low on-resistance for efficient power distribution.

Applications

Power distribution in embedded systems
Peripheral power switching in industrial equipment
Load protection in automotive electronics

Procurement Notes

Verify component authenticity through authorized channels due to the NRND status. Confirm package integrity and pin alignment upon receipt. Check datasheet revisions for any functional updates. Ensure storage conditions meet moisture sensitivity level requirements. Validate compatibility with existing circuit designs before final procurement.

Selection Notes

Select this component when a single channel with integrated reverse current blocking is required. The fixed 2.4 A limit suits applications needing precise overcurrent protection without external programming. Consider thermal dissipation capabilities given the 45 mOhm resistance at 5 A loads. Evaluate the QFN-12 footprint against available PCB space constraints.

Part Context

This part belongs to the MPS power switch family designed for robust load management. It complements other distribution switches by offering built-in reverse current protection, a feature not present in all standard load switches. The QFN-12 package provides a compact solution for high-current applications requiring minimal board area.
