MP5221DK-LF-Z

MP5221DK-LF-Z is listed in the Instrumentation, Op Amps, Buffer Amps range at ChipApex. The manufacturer field lists Monolithic Power Systems Inc.. Its product description is IC OPAMP GP 2 CIRCUIT 8MSOP. Review the specifications below when checking this part for your BOM.

Instrumentation, Op Amps, Buffer Amps specifications for MP5221DK-LF-Z

• Description：IC OPAMP GP 2 CIRCUIT 8MSOP
• Series：-
• Mfr：Monolithic Power Systems Inc.
• Package：Tape & Reel (TR)
• Amplifier Type：General Purpose
• Number of Circuits：2
• Output Type：Rail-to-Rail
• Slew Rate：45V/µs
• Gain Bandwidth Product：14 MHz
• Current - Input Bias：500 nA
• Voltage - Input Offset：2 mV
• Current - Supply：1.6mA
• Current - Output / Channel：70 mA
• Voltage - Supply Span (Min)：3.2 V
• Voltage - Supply Span (Max)：20 V
• Operating Temperature：-40°C ~ 85°C (TA)
• Grade：-
• Qualification：-
• Mounting Type：Surface Mount

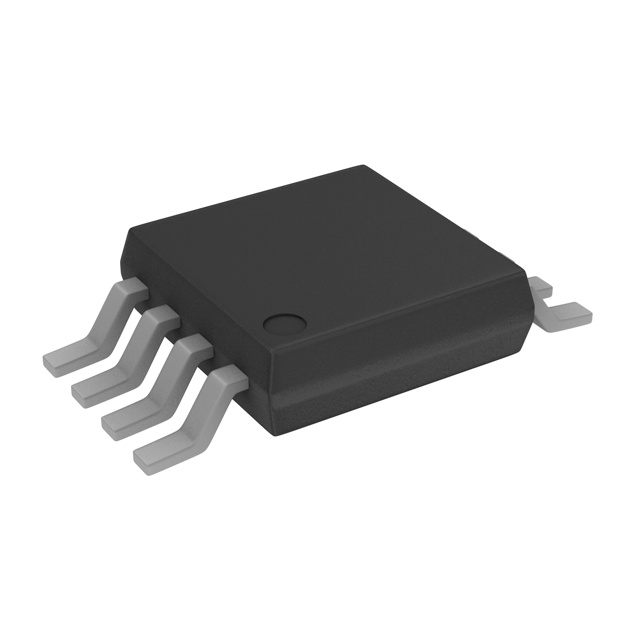

• Package / Case：8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
• Supplier Device Package：8-MSOP
• -3db Bandwidth：20 MHz
