MP5505GL-Z

Power Management - Specialized Overview

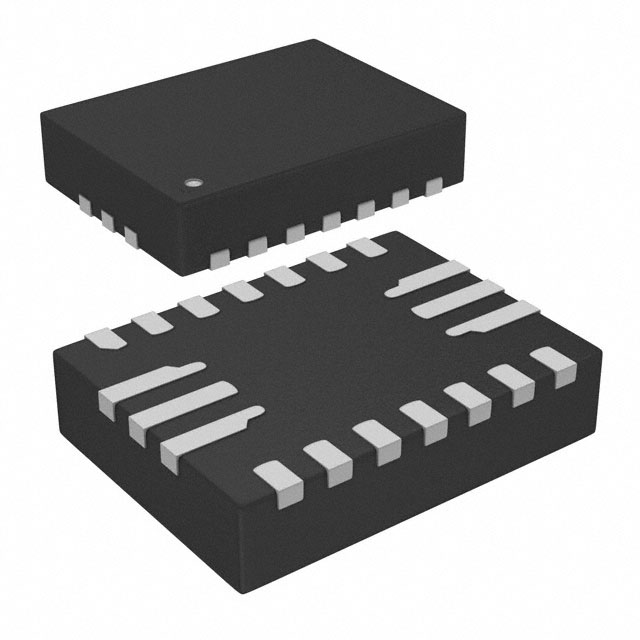

The MP5505GL-Z is a specialized power management IC designed for solid-state drive applications. It operates with an input voltage range of 2.7V to 7V and supports up to 4.5A input current limiting. The device integrates a 60mΩ MOSFET for input current limiting, a 30mΩ disconnect switch, and internal power switches rated at 70mΩ and 60mΩ. It features a 6V bus clamp voltage, adjustable dv/dt for bus voltage startup, and over-temperature protection. The component is housed in a QFN-20 (3mm x 4mm) package.

Power Management - Specialized Feature Summary

• Integrates input current limiting with dv/dt control to prevent system surge currents during startup.
• Provides energy storage and release management to minimize external capacitance requirements.
• Includes reverse current protection and a 6V bus clamp voltage for system stability.
• Offers power-on reset functionality to support hot-plug operations.

Power Management - Specialized Applications

• Solid-state drive (SSD) energy storage and management
• Hot-plug capable systems requiring power loss protection
• Systems needing minimized external component count for power sequencing

Power Management - Specialized Procurement Notes

Verify the specific suffix 'Z' corresponds to the tape-and-reel packaging configuration as indicated by distributor listings. Confirm that the MP5505EGL-Z variant listed in some catalogs refers to the same functional unit or a specific environmental grade. Ensure design compatibility with the QFN-20 footprint dimensions of 3mm by 4mm. Cross-reference the manufacturer's latest documentation to confirm if this part remains recommended for new designs or if alternatives like the MP5505A are preferred.

Power Management - Specialized Selection Notes

Select this component when designing SSDs or similar storage devices requiring integrated power loss protection and efficient energy management. The high integration level reduces the need for discrete current limiters and power switches. Consider the 2.7V to 7V input range suitability for standard system rails. Evaluate the thermal performance within the QFN-20 package against the expected load conditions and ambient temperature constraints.

Power Management - Specialized Part Context

The MP5505 series serves as a dedicated solution for managing energy storage in non-volatile memory applications. It addresses the challenge of sudden power failures by storing energy and releasing it to complete write operations. This family simplifies board layout by combining current limiting, switching, and management logic into a single compact package, reducing overall system size and complexity compared to discrete solutions.

Power Management - Specialized Replacement Considerations

The MP5505A is identified as an alternative for new designs. Verify pin-to-pin compatibility and electrical parameter equivalence before substitution. Check if the MP5505EGL-Z designation implies any specific environmental or reliability differences from the standard GL-Z variant.

Power Management - Specialized FAQ

What is the maximum input current limit supported by the MP5505GL-Z?

The device supports an input current limit of up to 4.5A.

Does the MP5505GL-Z support hot-plug operations?

Yes, it includes power-on reset functionality specifically designed to support hot-plug applications.

What is the purpose of the adjustable dv/dt feature?

The adjustable dv/dt controls the bus voltage startup slope to prevent excessive surge currents during system initialization.
