MP6412GQGU-Z

Overview

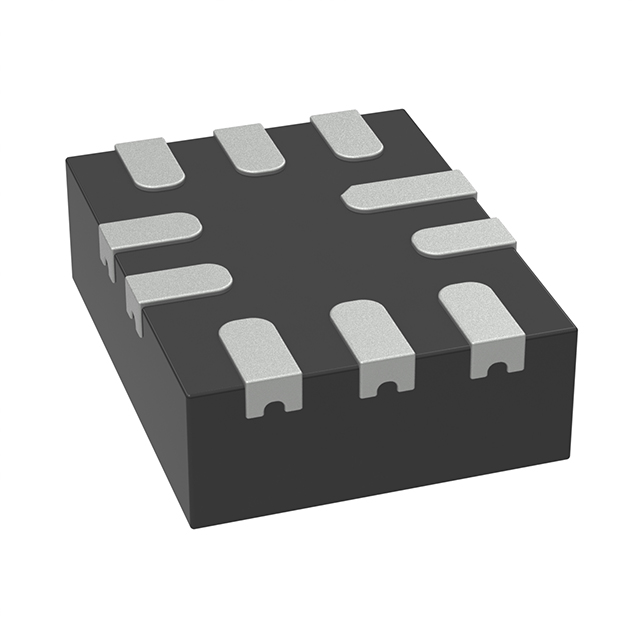

The MP6412GQGU-Z is a load switch controller from Monolithic Power Systems designed for mobile applications. It features an ultra-low quiescent current and includes a reset timer function. The device supports a P-channel output with a typical on-resistance of 150 milliohms. It operates within a load voltage range of 2.2V to 12V. The component is housed in a 10-UTQFN package measuring 1.4x1.8 mm. It functions across a temperature range of -40°C to +125°C TJ. Key protection mechanisms include overtemperature and UVLO.

Feature Summary

• Integrates a reset timer for system management
• Provides ultra-low IQ operation for power efficiency
• Includes overtemperature and UVLO fault protection

Applications

• Mobile device power management
• Load switching control circuits
• System reset logic implementation

Procurement Notes

Verify the specific ordering suffix matches the required tape and reel quantity. Confirm the package marking aligns with design requirements. Ensure thermal dissipation capabilities meet the application's junction temperature limits under maximum load conditions. Check RoHS compliance status against environmental regulations.

Selection Notes

Select this component when ultra-low standby current is critical for battery life. Consider the 150 milliohm on-resistance for voltage drop calculations. Evaluate the 10-UTQFN footprint for PCB space constraints. Verify input signal compatibility with the non-inverting input type.

Part Context

This part belongs to the MP6412 series of load switch controllers. It is categorized under PMIC and switching controllers. The manufacturer identifies it as a solution for mobile applications requiring efficient power distribution. The product is currently listed as active in the manufacturer's portfolio.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
