MP6528GR-P

Overview

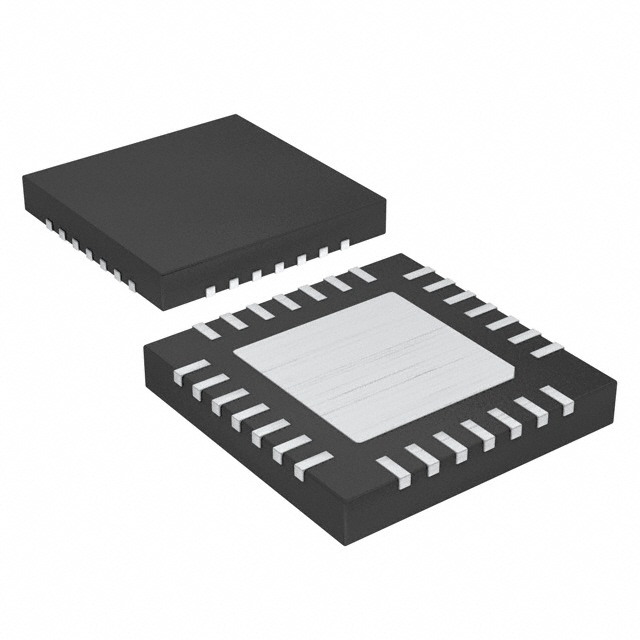

The MP6528GR-P is a half-bridge gate driver manufactured by Monolithic Power Systems. It operates within a supply voltage range of 5 V to 60 V and supports output currents up to 1 A. The device is housed in a QFN-28 surface-mount package and functions as a brushed DC motor driver. It features a power dissipation rating of 3.1 W and maintains an operating temperature range from -40 °C to +150 °C.

Feature Summary

• Provides high-voltage half-bridge gate driving capabilities for motor control applications
• Supports wide input voltage operation suitable for various automotive and industrial systems
• Designed for robust thermal performance with extended high-temperature operational limits

Applications

• Brushed DC motor control circuits
• Automotive electronic systems requiring qualified components
• Industrial motion control interfaces

Procurement Notes

Verify the specific suffix GR-P against official manufacturer documentation to confirm pinout, package dimensions, and material compliance. Confirm that the intended application environment aligns with the specified thermal and voltage ratings before finalizing procurement decisions.

Selection Notes

Select this component when a reliable half-bridge driver is required for brushed motors within the 5 V to 60 V range. Ensure the design accommodates the QFN-28 footprint and meets the thermal management requirements associated with the stated power dissipation characteristics.

Part Context

This part belongs to the MP6528 series of gate drivers from Monolithic Power Systems. It serves as a specialized interface for controlling external power switches in motor drive topologies, distinct from integrated full-bridge solutions or multi-channel drivers found in other product lines.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data.
