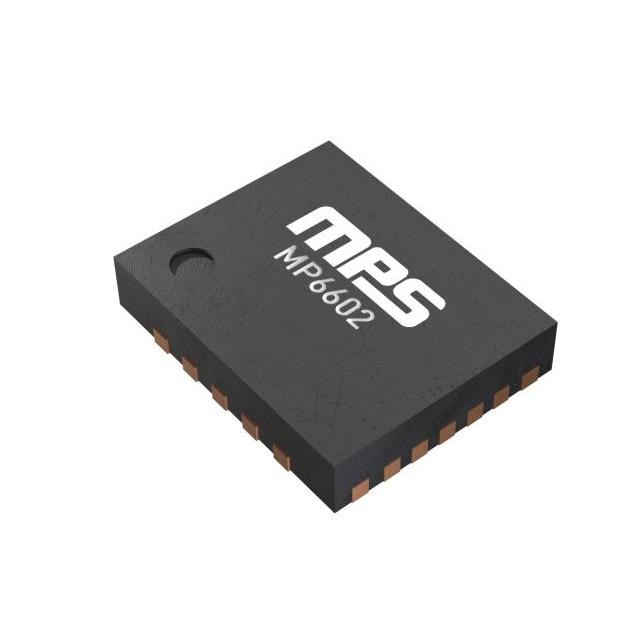

MP6602GV-P

$5.47

Description：35V STEPPER MOTOR DRIVER WITH ST
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:5cc2fb8e2aa5 Category: Motor Drivers, Controllers Brand: Monolithic Power Systems Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：35V STEPPER MOTOR DRIVER WITH ST
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Motor Type - Stepper：Bipolar
Motor Type - AC, DC：-
Function：Driver - Fully Integrated, Control and Power Stage
Output Configuration：Half Bridge (4)
Interface：SPI
Technology：Power MOSFET
Step Resolution：1 ~ 1/32
Applications：General Purpose
Current - Output：4A
Voltage - Supply：3V ~ 5.5V, 4.5V ~ 35V
Voltage - Load：4.5V ~ 35V
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Package / Case：25-PowerVQFN
Supplier Device Package：25-QFN (4x5)
Grade：-
Qualification：-

Download product information

MP6602GV-P

Overview

The MP6602GV-P is a fully integrated bipolar stepper motor driver manufactured by Monolithic Power Systems. It operates with a supply voltage range of 4.5 V to 35 V and delivers an output current of 4 A. The device features a serial interface for control and supports step resolutions from full step to 1/32 microstepping. It includes stall detection capabilities and is housed in a 25-QFN (4x5 mm) package suitable for surface mount installation.

Feature Summary

Integrates control logic and power MOSFETs into a single solution
Supports programmable microstepping resolution up to 1/32
Includes hardware-based stall detection functionality

Applications

Bipolar stepper motor control systems
Motion control applications requiring precise positioning
Industrial automation equipment

Procurement Notes

Verify the specific suffix 'P' against the manufacturer's official documentation to confirm tape and reel packaging specifications. Ensure that the QFN-25 thermal pad connection requirements are met during PCB layout to maintain the specified power dissipation rating of 4.22 W. Confirm RoHS compliance status through the latest datasheet revision.

Selection Notes

Select this component when a compact, high-current stepper driver with integrated intelligence is required. The 4 A output capability suits motors demanding higher torque than standard low-power drivers provide. The serial interface reduces pin count compared to parallel control methods, simplifying board routing in dense designs.

Part Context

This part belongs to the MP6602 series of stepper motor drivers from Monolithic Power Systems. It is functionally equivalent to the MP6602GV-Z variant, differing primarily in packaging configuration. Both variants share identical electrical characteristics and pinouts within the 25-QFN form factor.
