MP6650GJS-0000-Z

Overview

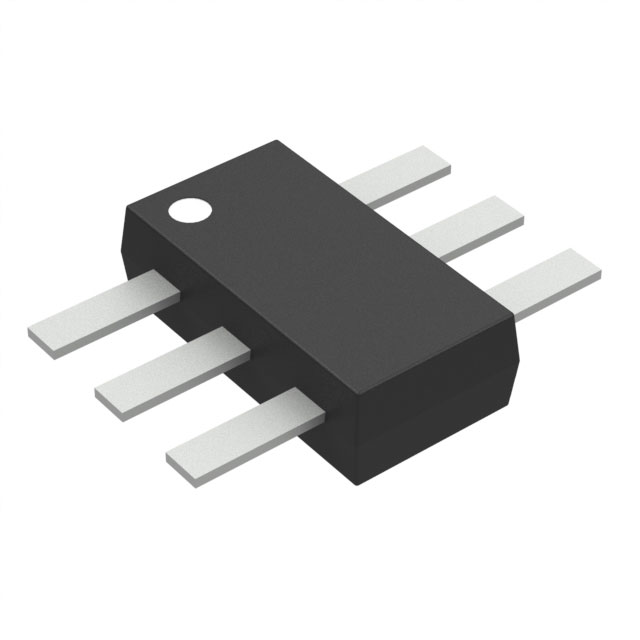

The MP6650GJS-0000-Z is a single-phase brushless DC (BLDC) motor driver manufactured by Monolithic Power Systems. It integrates power MOSFETs and operates on a PWM interface with a supply voltage range of 3.3V to 18V. The device delivers an output current of 2A and features two half-bridge outputs. It is housed in a TSOT-23-6-RSL package and supports an operating temperature range from -40°C to +125°C TJ.

Feature Summary

• Integrates dual half-bridge power MOSFETs for single-phase BLDC motor control
• Accepts pulse-width modulation (PWM) signals for commutation control
• Designed for operation across a wide industrial temperature range

Applications

• Single-phase brushless DC motor drives
• Fan and pump speed control systems
• Small appliance motor management

Procurement Notes

Verify the specific suffix against official Monolithic Power Systems documentation, as variations may indicate different packaging or environmental compliance levels. Confirm availability status directly with authorized distributors, as component lifecycle stages can change without immediate public notice. Ensure the ordering part number matches the required pinout and thermal specifications for your design.

Selection Notes

Select this component when a compact solution for driving single-phase BLDC motors is required within an 18V limit. The integrated MOSFET architecture reduces external component count compared to discrete solutions. Evaluate the TSOT-23-6-RSL package constraints for thermal dissipation and PCB layout requirements before finalizing the design.

Part Context

This part belongs to the MP6650 family of single-phase BLDC motor drivers from Monolithic Power Systems. The series focuses on providing integrated power stages for low-to-medium current applications. The GJS suffix typically denotes specific packaging and lead-free compliance attributes within the manufacturer's product lineup.

Replacement Considerations

MP6650GJR-0000-P is listed as a substitute option.
