MP6650GJSR-0000-Z

Overview

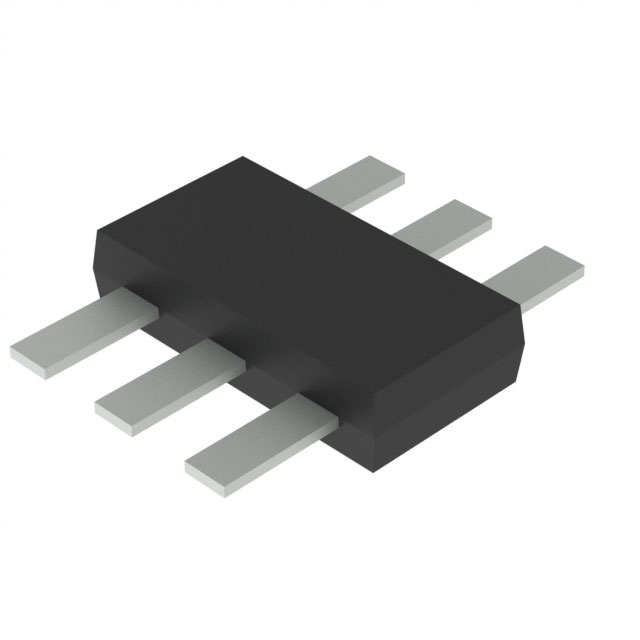

The MP6650GJSR-0000-Z is a single-phase brushless DC motor driver manufactured by Monolithic Power Systems. It integrates power MOSFETs and operates on a PWM interface with an input voltage range of 3.3V to 18V. The device provides a continuous output current of 2A and supports a supply voltage up to 18V. It functions in a unipolar configuration with two half-bridge outputs. The component is rated for junction temperatures between -40°C and +125°C and utilizes a TSOT-23-6-RSL surface-mount package.

Feature Summary

• Integrates power MOSFETs for single-phase BLDC motor control
• Supports PWM interface for drive signal processing
• Features dual half-bridge output configuration

Applications

• Brushless DC (BLDC) motor applications

Procurement Notes

Verify the specific suffix against official documentation, as the provided reference indicates this variant may be discontinued. Confirm availability through authorized distributors or check for active replacement part numbers within the same product family. Ensure the ordering code matches the required package and temperature grade specifications before finalizing procurement plans.

Selection Notes

Select this component for designs requiring a compact single-phase BLDC solution with integrated power switches. The TSOT-23-6-RSL package suits space-constrained layouts. Verify that the 2A output current meets load requirements and that the 3.3V to 18V supply range aligns with system power rails. Consider thermal dissipation capabilities within the specified operating temperature range.

Part Context

This part belongs to the MP6650 series of single-phase BLDC motor drivers from Monolithic Power Systems. It is categorized under Motor / Motion / Ignition Controllers & Drivers within the PMIC segment. The device is designed for efficient motor control using a unipolar drive scheme.

Replacement Considerations

MP6650GJS-0000-P is listed as a substitute part number.
