MP8125EF-LF

Overview

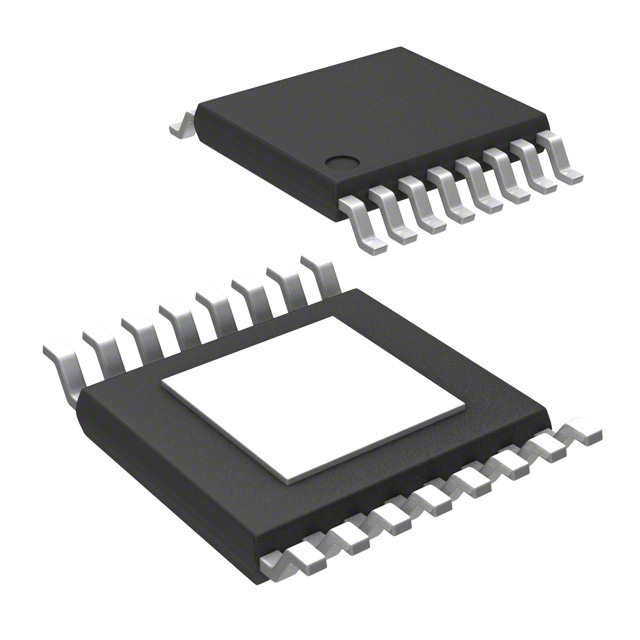

The MP8125EF-LF-Z is a specialized switching voltage regulator designed for Low Noise Block downconverter (LNB) applications. It operates with an input voltage range of 8V to 14V and delivers a maximum output current of 550 mA. The device integrates a fixed switching frequency of 22 kHz, which minimizes electromagnetic interference in sensitive radio frequency circuits. It features load regulation of 30 mV and operates within a temperature range of -40°C to +85°C. Packaged in a 16-TSSOP-EP surface-mount format, it provides a compact solution for satellite receiver power management.

Feature Summary

• Integrated LNB-specific control logic for direct interface with satellite tuner modules
• Ultra-low switching frequency operation to prevent RF interference in signal paths
• High precision load regulation ensuring stable voltage delivery under varying current loads

Applications

• Satellite television receiver systems
• Low Noise Block downconverter (LNB) power supplies
• RF front-end voltage regulation
• Consumer electronics requiring low-noise DC power conversion

Procurement Notes

Verify the exact suffix (e.g., LF-Z) against the manufacturer's latest datasheet to confirm pinout and thermal pad configuration. Ensure the design supports the specific 22 kHz switching frequency requirements. Confirm that the 16-TSSOP-EP package footprint matches the PCB layout guidelines provided in the official documentation before finalizing procurement.

Selection Notes

Select this component when designing power stages for LNBs where low-frequency switching noise must be avoided. It is suitable for applications requiring a regulated 14V or 18V supply from a higher input rail. Consider the 550 mA current limit and the thermal performance of the TSSOP-EP package relative to the ambient operating conditions.

Part Context

This part belongs to Monolithic Power Systems' portfolio of special-purpose regulators tailored for satellite communication equipment. Unlike general-purpose buck converters, it includes built-in protections and control signals specific to LNB startup and shutdown sequences. It serves as a dedicated power management IC for the high-voltage DC line used in satellite reception hardware.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult the manufacturer's official recommendation list for end-of-life transitions.
