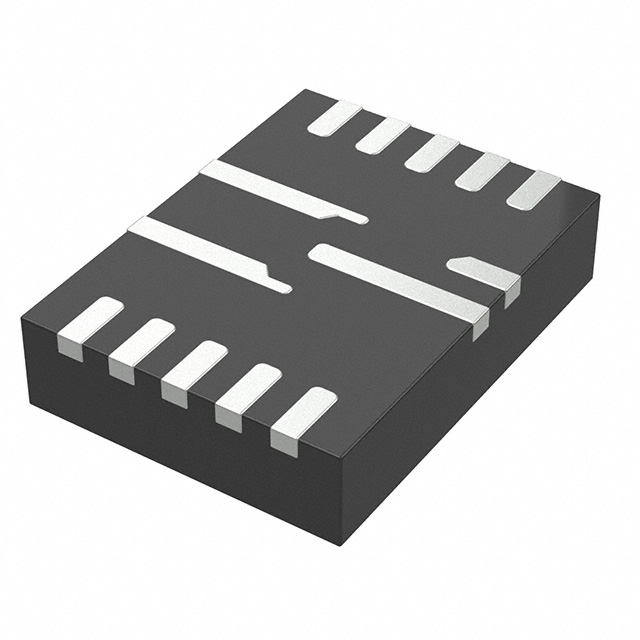

MP8714GLE-P

$1.20

Description：IC REG BUCK ADJ 10A 14QFN
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR)

SKU:2eece4ac4009 Category: Voltage Regulators - DC DC Switching Regulators Brand: Monolithic Power Systems Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MP8714GLE-P is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Monolithic Power Systems Inc.. Its product description is IC REG BUCK ADJ 10A 14QFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for MP8714GLE-P

Description：IC REG BUCK ADJ 10A 14QFN
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：4.5V
Voltage - Input (Max)：17V
Voltage - Output (Min/Fixed)：0.6V
Voltage - Output (Max)：5.5V
Current - Output：10A
Frequency - Switching：500kHz
Synchronous Rectifier：No
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Package / Case：14-PowerVFQFN
Supplier Device Package：14-QFN (3x4)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for MP8714GLE-P

MP8714GLE-P

Voltage Regulators - DC DC Switching Regulators Overview

The MP8714GLE-P is a high-efficiency, synchronous step-down DC/DC converter manufactured by Monolithic Power Systems. It operates with an input voltage range of 4.5 V to 17 V and delivers up to 10 A of output current. The device supports adjustable output voltages from 600 mV to 5.5 V and features a fixed switching frequency of 500 kHz. Key electrical specifications include a maximum load regulation of 1%, a quiescent current of 9 uA during operation, and a standby current of 560 uA. It functions within a temperature range of -40°C to +125°C and utilizes a QFN-14 surface-mount package.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Integrates synchronous N-channel MOSFETs for high conversion efficiency
Includes programmable soft-start functionality to limit inrush current
Provides comprehensive protection against over-current, over-temperature, and under-voltage lockout

Voltage Regulators - DC DC Switching Regulators Applications

Point-of-load (POL) power distribution systems
Industrial equipment power supplies
Communications infrastructure power modules
Portable instrumentation power sources

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix and tape-and-reel quantity requirements before ordering. Confirm that the QFN-14 footprint matches the target PCB layout. Ensure thermal management strategies align with the specified operating temperature range. Check for any recent lifecycle status updates or recommended replacement parts from the manufacturer.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a single-output buck converter is required for 12 V or 15 V input systems. It is suitable for applications demanding moderate current levels up to 10 A with efficient power conversion. Consider the fixed 500 kHz frequency for standard passive component sizing. Evaluate the QFN-14 package constraints regarding thermal dissipation and board space availability.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the MPS MP8714 series of synchronous step-down converters. It is designed as a compact solution for general-purpose power management tasks. The series emphasizes efficiency and integration to simplify design implementation. It serves as a core power regulation element in various electronic subsystems requiring stable voltage rails.
