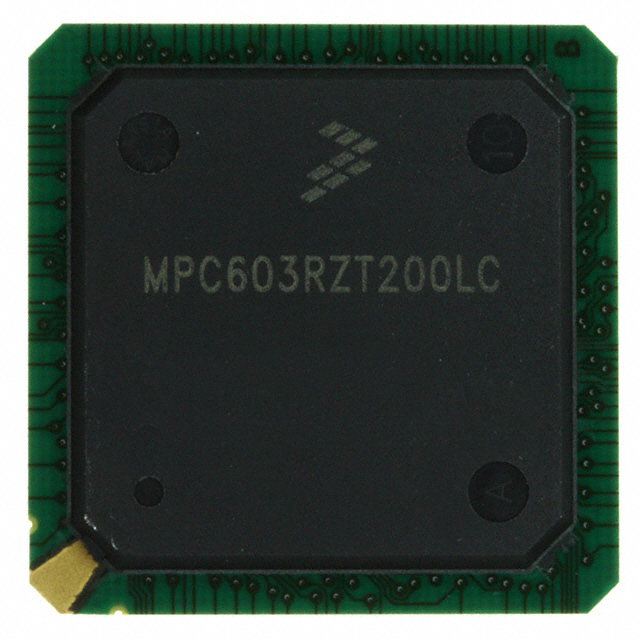

MPC603RZT200LC
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：IC MPU MPC6XX 200MHZ 255BGA
- Series：MPC6xx
- Mfr：NXP USA Inc.
- Package：Tray
- Core Processor：PowerPC 603e
- Number of Cores/Bus Width：1 Core, 32-Bit
- Speed：200MHz
- Co-Processors/DSP：-
- RAM Controllers：-
- Graphics Acceleration：No
- Display & Interface Controllers：-
- Ethernet：-
- SATA：-
- USB：-
- Voltage - I/O：3.3V
- Operating Temperature：0°C ~ 105°C (TA)
- Security Features：-
- Mounting Type：Surface Mount
- Package / Case：255-BBGA
- Supplier Device Package：255-PBGA (23x23)
- Additional Interfaces：-
- Grade：-
- Qualification：-
Download product information
Overview
The MPC603RZT200LC is a RISC microprocessor belonging to the PowerPC 603e family, manufactured by Motorola. It operates at a CPU frequency of 200 MHz with a core voltage of 2.5 V ±5%. The device utilizes a CBGA package and supports an operating junction temperature range from -40°C to 105°C. This specific part number represents Revision 2.1 of the PID7t-603e specification, which includes manufacturing improvements but maintains functional equivalence to previous revisions.
Feature Summary
- Supports 32-bit RISC architecture within the PowerPC 603e family
- Includes known errata regarding cache coherency and bus reservation behaviors
- Features extended temperature range operation suitable for industrial environments
Applications
- Systems requiring simultaneous software and hardware coherency
- Embedded applications utilizing touch load instructions
- Multi-processor systems managing cache line invalidation
Procurement Notes
Verify that the required component matches the PID7t-603e specification revision 2.1. Confirm the package type corresponds to CBGA and check for the presence of specific errata workarounds in system design documentation. Ensure the voltage and temperature ratings align with the target application environment before procurement.
Selection Notes
Select this processor when a 200 MHz PowerPC 603e core is required with extended temperature capabilities. Consider the documented errata related to dcbi broadcasts and lwarx/stwcx competition during system architecture planning. Verify compatibility with existing bus protocols and memory management unit configurations.
Part Context
This component is part of the Motorola PowerPC 603e RISC Microprocessor Family. It serves as a high-performance embedded processor designed for demanding computing tasks. The MPC603R series provides a balance of processing power and integration for various electronic systems.
Replacement Considerations
Functionally equivalent parts include other MPC603RRX variants within the same family. Consult the official datasheet for detailed cross-referencing information regarding alternative frequencies or package options.
