MPC8248CZQMIBA-NXP

Overview

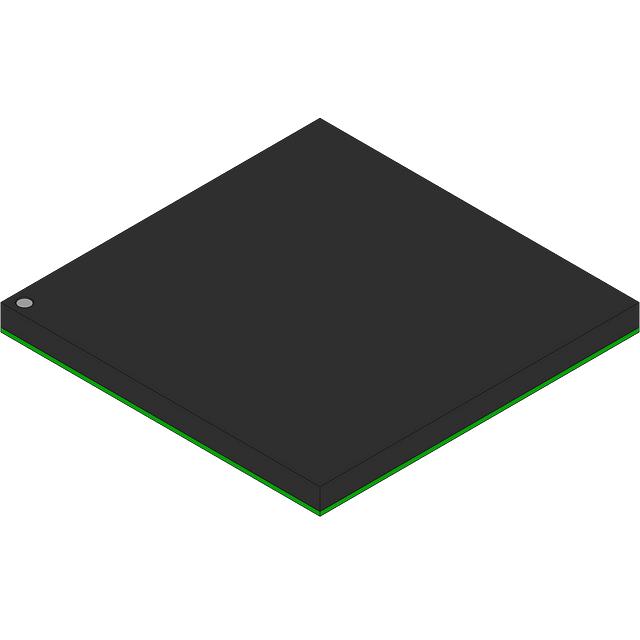

The MPC8248CZQMIBA is a PowerQUICC II embedded processor manufactured by NXP. It integrates an embedded Power Architecture core and a RISC-based Communications Processor Module (CPM) on a single chip. The device operates at a maximum clock frequency of 66.7 MHz with a 32-bit architecture. It features a 64-bit external data bus width and utilizes a 516-pin BGA package measuring 26x26 mm. The component supports DMA channels and includes a security engine for encryption algorithms.

Feature Summary

• Dual-core architecture combining a Power Architecture core with a Communications Processor Module to balance high-level processing and peripheral communication tasks.
• Integrated hardware security engine supporting DES, 3DES, MD-5, SHA-1, AES, and ARC-4 encryption algorithms.
• High level of on-chip integration within a small-footprint 516-pin PBGA package to reduce board space requirements.

Applications

• Small and medium enterprise routers
• Virtual private network equipment
• Wireless access points

Procurement Notes

Verify the specific suffix against official documentation to confirm pinout and electrical characteristics. Confirm RoHS compliance status as indicated in technical specifications. Ensure the source document explicitly identifies this part number as a PowerQUICC II processor before procurement. Check for end-of-life notifications or obsolescence warnings from the manufacturer.

Selection Notes

Select this component for applications requiring integrated hardware security and dual-core processing efficiency. Consider the 516-pin BGA package constraints during PCB layout design. Evaluate the 66.7 MHz operating speed against system performance requirements. Verify compatibility with required protocols such as PCI and USB interfaces.

Part Context

This processor belongs to the PowerQUICC II family, which addresses cost-sensitive networking and communications needs. The family includes models like the MPC8247, MPC8271, and MPC8272. These devices are designed to offer low power consumption and high integration levels suitable for various embedded systems.

Replacement Considerations

Public confirmed substitute part numbers only; omit otherwise.
