MPC8536EBVJAULA

Overview

The MPC8536EBVJAULA is a PowerQUICC III integrated processor featuring a single 32-bit e500 core operating up to 1.333 GHz. It includes 32 KB L1 instruction and data caches, plus a 512 KB L2 cache. The device supports DDR2/DDR3 SDRAM with full ECC via a 64-bit/32-bit bus at up to 667 MHz data rate. Key peripherals include two enhanced three-speed Ethernet controllers (eTSECs), three PCI Express interfaces, two SATA controllers, three USB dual-role controllers, an enhanced local bus controller, and an integrated security engine.

Feature Summary

• Integrated security engine optimized for IPsec, SSL/TLS, and 3GPP algorithms
• Dual enhanced three-speed Ethernet controllers with IEEE 1588 support
• High-speed multiplexed interfaces including PCI Express and SATA
• Enhanced Serial Peripheral Interface supporting boot capability

Applications

• Enterprise networking equipment
• Telecom transmission and switching systems
• Storage area network controllers
• Industrial control systems requiring high reliability

Procurement Notes

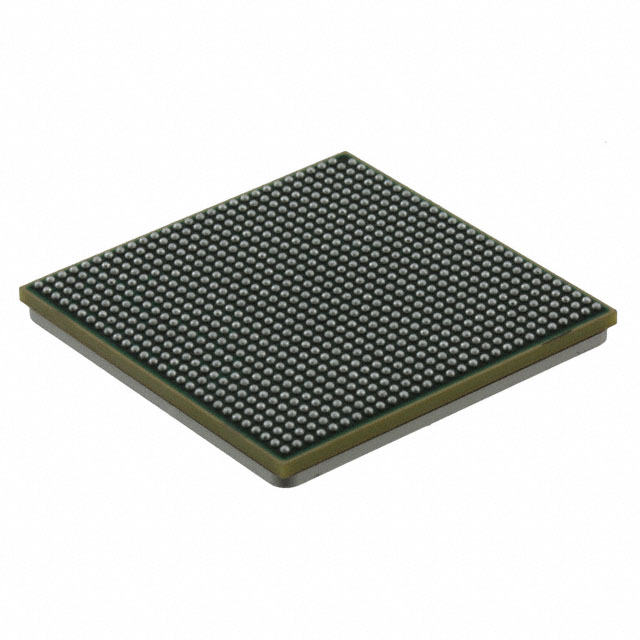

Verify the specific suffix 'ULA' against official NXP documentation to confirm package type and temperature range. Confirm end-of-life status and availability of long-term supply agreements. Ensure design-in compatibility with existing PCB layouts due to the 783-pin FC-PBGA footprint. Validate voltage requirements for core and I/O rails during power sequencing.

Selection Notes

Select this component when high-performance embedded processing with robust security features is required. The integrated security engine reduces external component count for encryption tasks. Consider the extensive peripheral set for direct connectivity to storage and network interfaces without additional bridge chips. Evaluate thermal management needs for the 783-ball BGA package in enclosed environments.

Part Context

This part belongs to the NXP PowerQUICC III family, designed for communications applications. It utilizes the scalable e500 system-on-chip platform. The MPC8536E variant specifically targets enterprise and telecom markets with integrated gigabit Ethernet and high-speed serial interfaces. It represents a generation of processors built on advanced silicon processes for performance and power efficiency.

Replacement Considerations

Check for MPC8536AVJATHA or MPC8536EAVJATHA as potential functional equivalents within the same family. Verify pin-to-pin compatibility and software migration paths before substitution. Consult NXP for current lifecycle status and recommended alternatives if this specific revision is discontinued.
