MPD-1+

Overview

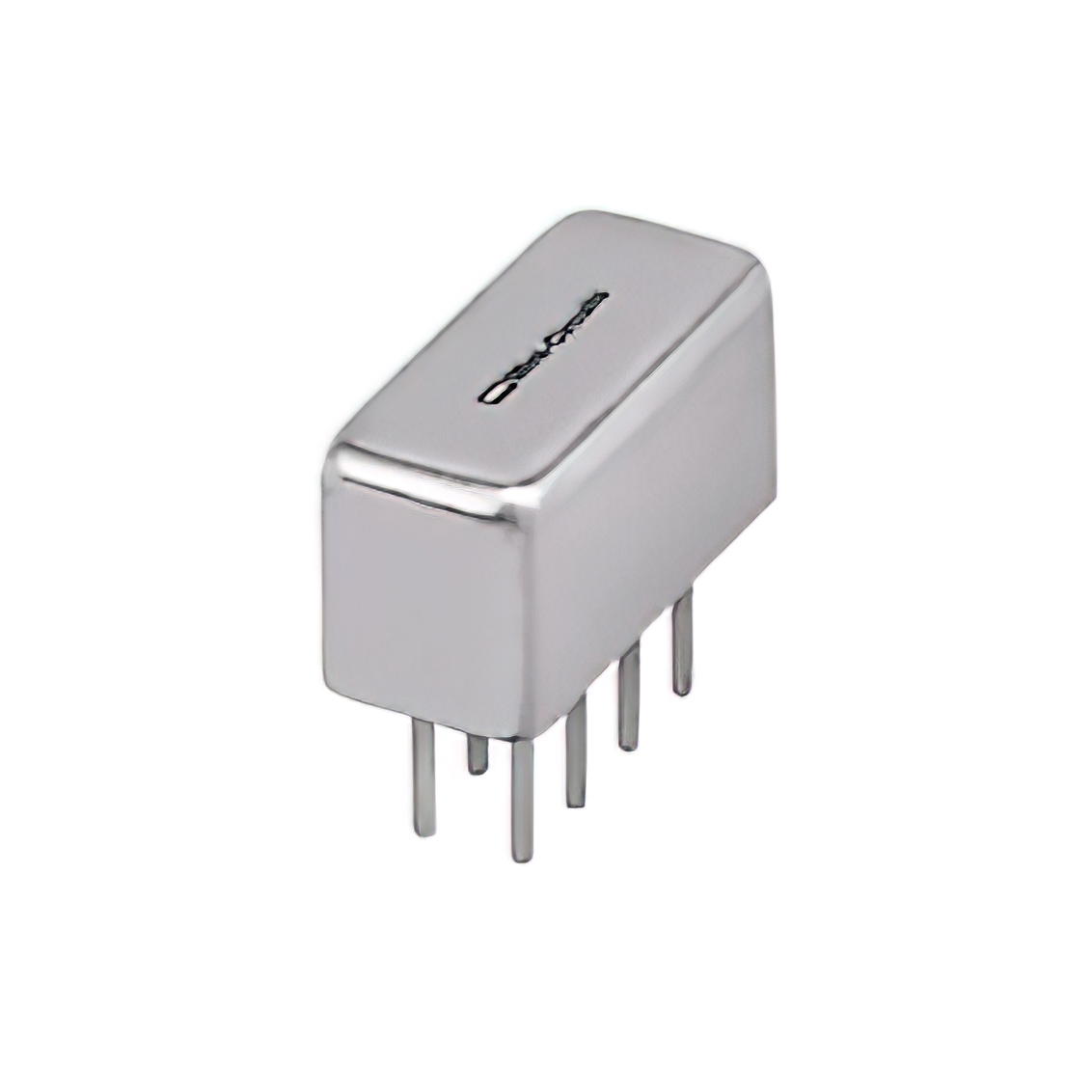

The MPD-1+ is a high DC output plug-in phase detector manufactured by Mini-Circuits. It operates within an input frequency range of 1 MHz to 100 MHz and provides an output frequency range of 0 Hz to 50 MHz. The device utilizes silicon technology and features a DIP-8 through-hole package. It supports a minimum operating temperature of -55°C and a maximum of +100°C. The component is designed for general-purpose RF applications requiring precise phase detection capabilities.

Feature Summary

• High DC output capability for direct interfacing with control systems
• Silicon-based construction ensuring reliable performance across wide temperature ranges
• Plug-in DIP-8 form factor facilitating easy integration into existing circuits

Applications

• Phase-locked loop (PLL) systems
• Frequency synthesis circuits
• RF communication transceivers

Procurement Notes

Verify the specific suffix designation against official Mini-Circuits documentation to ensure correct RoHS compliance status. Confirm that the DIP-8 through-hole package aligns with your PCB footprint requirements. Cross-reference the 1 MHz to 100 MHz input frequency range with your system's operational bandwidth to ensure compatibility before finalizing procurement orders.

Selection Notes

Select this component when a high DC voltage output is required for phase comparison in PLL architectures. Ensure the application environment stays within the specified -55°C to +100°C operating temperature limits. Verify that the 500 Ohm output load impedance matches your downstream circuit design to maintain optimal signal integrity and measurement accuracy during operation.

Part Context

The MPD-1+ belongs to the MPD series of phase detectors produced by Mini-Circuits. This series focuses on providing robust phase detection solutions for RF and microwave applications. The component serves as a fundamental building block for frequency control systems, offering a balance between performance and ease of integration in standard electronic assemblies.

Replacement Considerations

Consult official Mini-Circuits substitution guides for compatible alternatives. Verify pinout compatibility and electrical specifications such as input frequency range and output characteristics before replacing.
