MPF300T-FCG784NI

Field Programmable Gate Array Overview

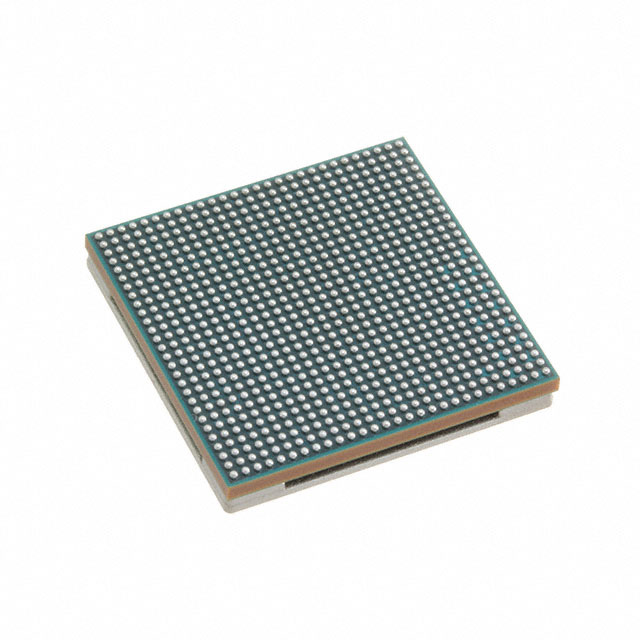

The MPF300T-FCG784NI is a PolarFire Mid-Range Field Programmable Gate Array (FPGA) manufactured by Microchip Technology. It features 300,000 logic elements and supports up to 512 I/Os within a 784-ball FCBGA package. The device operates with core supply voltages ranging from 970 mV to 1.08 V depending on the specific rail. It is designed for industrial applications with an operating temperature range of -40°C to +100°C TJ. This component belongs to the MPF300T series and utilizes non-volatile Flash memory technology for configuration retention.

Field Programmable Gate Array Feature Summary

• Non-volatile Flash-based architecture enabling instant-on operation without external configuration memory.
• Integrated low-power design optimized for energy-efficient portable and battery-operated systems.
• Supports high-speed serial transceivers for complex communication interface requirements.

Field Programmable Gate Array Applications

• Industrial automation control systems
• Portable medical instrumentation
• Test and measurement equipment

Field Programmable Gate Array Procurement Notes

Verify the complete part number including suffixes such as NI against official Microchip documentation to ensure correct temperature grade and packaging specifications. Confirm RoHS compliance status through current datasheets or environmental files provided by the manufacturer prior to ordering.

Field Programmable Gate Array Selection Notes

Select this model when a balance of moderate logic density and low power consumption is required. Ensure the 784-pin footprint fits the target PCB layout constraints. Compare against the MPF300TS variant if higher speed grades are necessary for specific timing closure requirements.

Field Programmable Gate Array Part Context

This component is part of the PolarFire family, which distinguishes itself from SRAM-based FPGAs by using embedded Flash technology. This allows the device to retain its configuration data without power, simplifying system design by removing the need for separate configuration PROMs typically found in other FPGA architectures.

Field Programmable Gate Array Replacement Considerations

Direct pin-to-pin replacements within the same package may include other variants of the MPF300T series, such as different speed grades or temperature ranges. Verify electrical compatibility and feature sets before substituting.
