MPF5200AMMG0ESR2

Overview

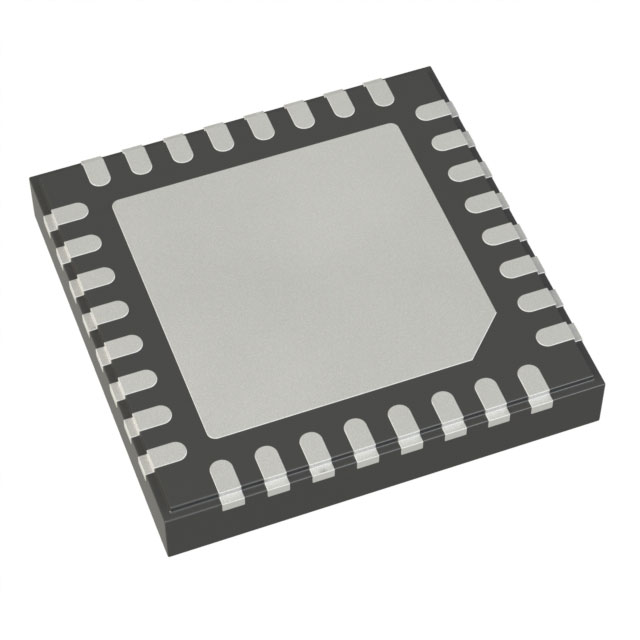

The MPF5200AMMG0ESR2 is a specialized automotive power management integrated circuit (PMIC) from NXP Semiconductors, belonging to the PF5200 series. It features three step-down DC/DC converters and one low-dropout regulator (LDO). The device operates within an input voltage range of 2.7 V to 5.5 V and supports a maximum output current of 8 A. Designed for high-performance applications, it meets QM safety levels and functions reliably between -40°C and +125°C. The component is housed in a HWQFN-32 package suitable for surface mount installation.

Feature Summary

• Integrates multiple power conversion channels including step-down DC/DCs and an LDO for comprehensive power distribution.
• Configurable architecture optimized for high-performance automotive electronic systems.
• Robust thermal performance supporting operation in extreme temperature environments typical of automotive use.

Applications

• Automotive Advanced Driver Assistance Systems (ADAS)
• High-performance automotive processor power supply
• Primary core power supply for automotive microcontrollers

Procurement Notes

Verify the specific suffix 'ESR2' against official NXP documentation to confirm tape-and-reel packaging configuration. Ensure compatibility with the required development kits, such as KITPF5200SKTEVM or KITPF5200FRDMEVM, during the sourcing phase. Cross-reference the manufacturer part number with authorized distributors to validate authenticity and traceability before finalizing procurement orders.

Selection Notes

Select this PMIC when designing automotive systems requiring a pre-programmed solution with multiple regulated outputs. The device is appropriate for applications needing high efficiency and compact footprint due to its integrated buck converters and LDO. Consider the HWQFN-32 package constraints and thermal dissipation requirements relative to the 8 A total output capability when evaluating board layout and cooling strategies.

Part Context

This component belongs to the PF5200 family of multi-channel PMICs designed by NXP Semiconductors. These devices are engineered specifically for the automotive sector, addressing the need for reliable power management in complex electronic architectures. The series supports various configurations to meet diverse system requirements while maintaining strict automotive quality standards.

Replacement Considerations

Consult official NXP substitution guides for verified alternatives. Generic cross-references may not match the specific QM safety level or pre-programmed configuration of the PF5200 series.
