MPM3806CGLE-18-AEC1-P

MPM3806CGLE-18-AEC1-P is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Monolithic Power Systems Inc.. Its product description is 5.5V, 1A, 2.4MHZ, SYNCHRONOUS ST. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MPM3806CGLE-18-AEC1-P

• Description：5.5V, 1A, 2.4MHZ, SYNCHRONOUS ST
• Series：-
• Mfr：Monolithic Power Systems Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：2.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：1.8V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1A
• Power (Watts)：1.8 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 150°C
• Efficiency：-
• Mounting Type：Surface Mount, Wettable Flank

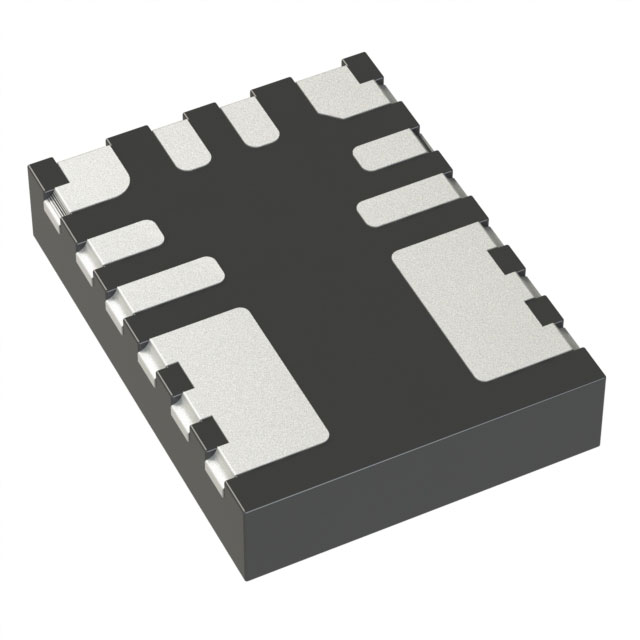

• Package / Case：15-PowerLFQFN Module
• Size / Dimension：0.16" L x 0.12" W x 0.06" H (4.0mm x 3.0mm x 1.6mm)
• Supplier Device Package：15-QFN (3x4)
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：Automotive
• Qualification：AEC-Q100

DC DC Converters datasheet and documents for MPM3806CGLE-18-AEC1-P
