MPQ4323CGRHE-33-AEC1-P

$3.69

Description：IC REG BUCK ADJ 3A 14QFN
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a0830f438c72 Category: Voltage Regulators - DC DC Switching Regulators Brand: Monolithic Power Systems Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MPQ4323CGRHE-33-AEC1-P is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Monolithic Power Systems Inc.. Its product description is IC REG BUCK ADJ 3A 14QFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for MPQ4323CGRHE-33-AEC1-P

Description：IC REG BUCK ADJ 3A 14QFN
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：3.3V
Voltage - Input (Max)：36V
Voltage - Output (Min/Fixed)：0.8V
Voltage - Output (Max)：34.2V
Current - Output：3A
Frequency - Switching：350kHz ~ 2.5MHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Surface Mount, Wettable Flank

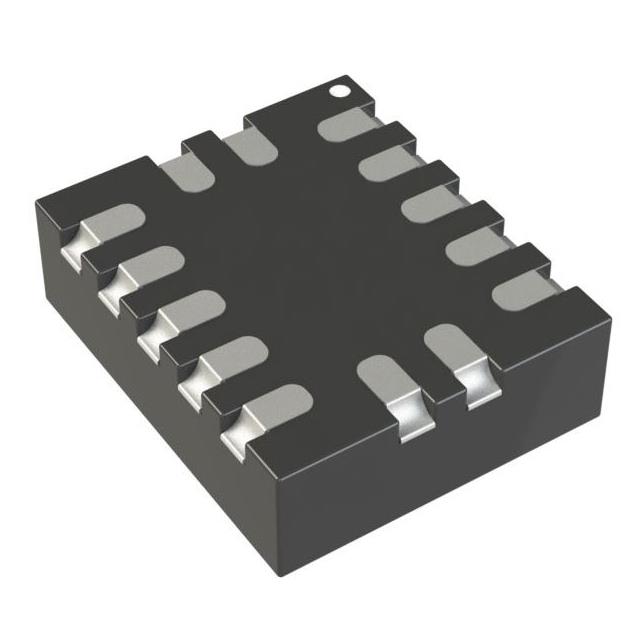

Package / Case：14-VFQFN
Supplier Device Package：14-QFN (2.5x3)
Grade：Automotive
Qualification：AEC-Q100

Voltage Regulators - DC DC Switching Regulators datasheet and documents for MPQ4323CGRHE-33-AEC1-P

MPQ4323CGRHE-33-AEC1-P

Voltage Regulators - DC DC Switching Regulators Overview

The MPQ4323CGRHE-33-AEC1-P is a synchronous step-down converter from Monolithic Power Systems, designed for automotive applications. It features a fixed 3.3 V output voltage and supports up to 3 A continuous output current. The device operates with an input voltage range of 3.3 V to 36 V and withstands 42 V load dump events. It utilizes a QFN-14 package and offers a switchable frequency between 350 kHz and 2.5 MHz. Key electrical parameters include a quiescent current of 1 uA in shutdown mode, operation across a junction temperature range of -40 C to +150 C, and AEC-Q100 qualification.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Integrated high-side and low-side power MOSFETs for efficient synchronous buck conversion
Robust 42 V load dump tolerance suitable for harsh automotive input environments
Ultra-low 1 uA shutdown current enabling extended battery life in standby modes
Configurable switching frequency allows optimization for efficiency or EMI performance

Voltage Regulators - DC DC Switching Regulators Applications

Automotive infotainment system power distribution
Telematics control unit voltage regulation
ADAS sensor module power supply conditioning
Body control module auxiliary power rails

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix indicates the fixed 3.3 V output variant rather than adjustable versions. Confirm AEC-Q100 Grade 1 qualification status matches project requirements. Ensure thermal design accounts for the QFN-14 package dissipation characteristics under maximum load conditions. Cross-reference pinout compatibility if replacing legacy components in existing PCB layouts.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a fixed 3.3 V rail is required without external feedback resistors. Consider the QFN-14 package size constraints against available board space. Evaluate the 3 A current capability against peak load demands including transient spikes. Verify that the 36 V maximum input voltage aligns with the system's nominal bus voltage before finalizing the bill of materials.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the MPQ4323 family of automotive-grade synchronous buck converters. The series is characterized by high efficiency and wide input voltage ranges tailored for vehicle electrical systems. The GRHE suffix denotes the specific QFN-14 package configuration and thermal pad design distinct from other variants in the lineup.
