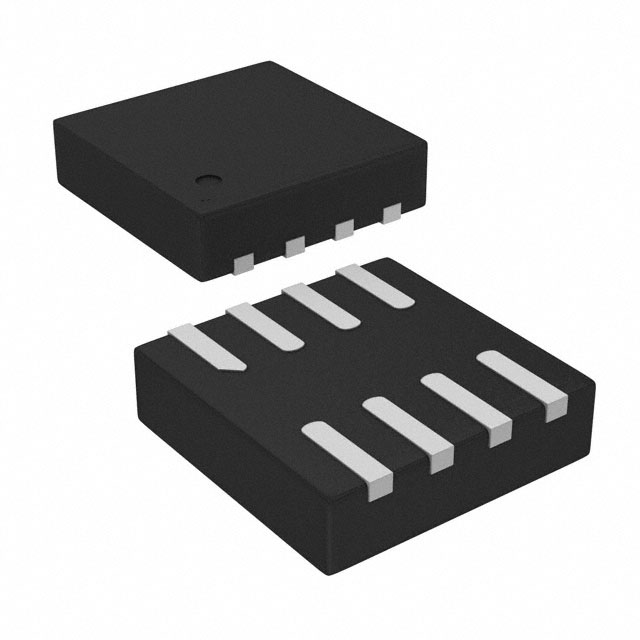

MPQ4423GQ-Z

$1.23

Description：IC REG BUCK ADJ 3A 8QFN
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR)

SKU:3c40ec774ce4 Category: Voltage Regulators - DC DC Switching Regulators Brand: Monolithic Power Systems Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MPQ4423GQ-Z is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Monolithic Power Systems Inc.. Its product description is IC REG BUCK ADJ 3A 8QFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for MPQ4423GQ-Z

Description：IC REG BUCK ADJ 3A 8QFN
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：4V
Voltage - Input (Max)：30V
Voltage - Output (Min/Fixed)：0.8V
Voltage - Output (Max)：27V
Current - Output：3A
Frequency - Switching：410kHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Package / Case：8-VDFN
Supplier Device Package：8-QFN (3x3)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for MPQ4423GQ-Z

MPQ4423GQ-Z

Voltage Regulators - DC DC Switching Regulators Overview

The MPQ4423GQ-Z is an industrial-grade synchronous step-down converter from Monolithic Power Systems. It features a buck topology with a QFN-8 package, supporting SMD/SMT installation. The device accepts an input voltage range of 4 V to 30 V and delivers up to 3 A output current. Output voltage is adjustable from 800 mV to 27 V. Key electrical parameters include a switching frequency of 410 kHz, quiescent current of 500 uA, and load regulation of 1.5%. It operates within a temperature range of -40°C to +125°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

High efficiency synchronous step-down conversion architecture
Integrated shutdown control functionality
Industrial grade reliability for wide temperature operation

Voltage Regulators - DC DC Switching Regulators Applications

Industrial equipment power distribution
Embedded system voltage regulation
General purpose DC-DC conversion

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix Z indicates reel packaging configuration against official MPS documentation. Confirm that the 4 V to 30 V input range applies strictly to this variant. Ensure compatibility with standard surface mount assembly processes for the QFN-8 footprint. Cross-reference the 410 kHz switching frequency in design simulations.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a fixed 410 kHz frequency is required for EMI management. The 3 A current rating suits moderate load applications. Verify that the 30 V maximum input voltage aligns with the source rail. Consider thermal dissipation requirements for the QFN-8 package under full load conditions.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the MPQ4423 series of synchronous buck converters. It shares architectural similarities with automotive variants like the MPQ4423GQ-AEC1-P but lacks AEC-Q100 qualification. The GQ suffix denotes the specific package and pinout configuration used across the family.
