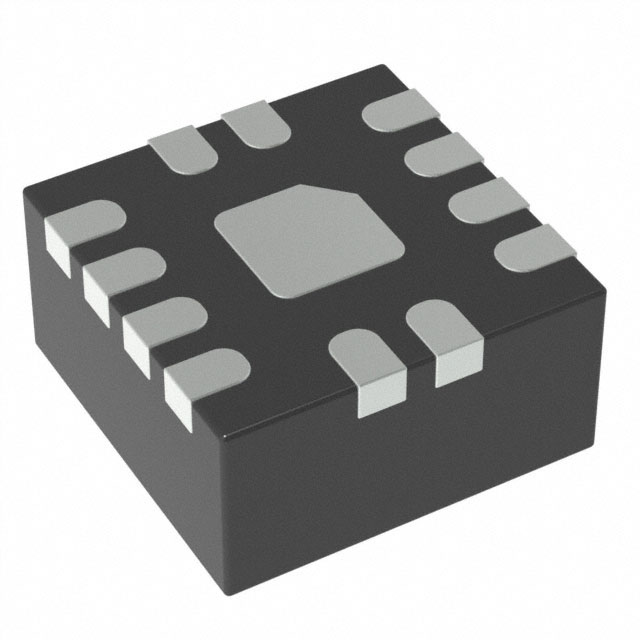

MPQ5073GG-AEC1-Z

$1.70

Description：IC PWR SWITCH P-CHAN 1:1 12QFN
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:784c8635c0b5 Category: Power Distribution Switches, Load Drivers Brand: Monolithic Power Systems Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC PWR SWITCH P-CHAN 1:1 12QFN
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Switch Type：General Purpose
Number of Outputs：1
Ratio - Input:Output：1:01
Output Configuration：High Side
Output Type：P-Channel
Interface：-
Voltage - Load：0.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)：0.5V ~ 5.5V
Current - Output (Max)：2A
Rds On (Typ)：50mOhm
Input Type：CMOS
Features：Slew Rate Controlled
Fault Protection：Over Temperature, Short Circuit
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Supplier Device Package：12-QFN (2x2)
Package / Case：12-VFQFN Exposed Pad
Grade：-
Qualification：-

Download product information

MPQ5073GG-AEC1-Z

Overview

The MPQ5073GG-AEC1-Z is an automotive-grade P-channel load switch from Monolithic Power Systems, designed for power distribution applications. It supports a supply voltage range of 0.5V to 5.5V and delivers a continuous output current of 2A with a maximum on-resistance of 70 mOhms. The device features a programmable current limit set at 1.4A and operates within a temperature range of -40°C to +125°C. Packaged in a compact 12-QFN (2x2 mm) format, it meets AEC-Q100 standards for automotive reliability.

Feature Summary

Automotive qualification compliant with AEC-Q100 standards for reliable operation in vehicle environments.
Programmable current limiting capability allows customization of protection thresholds via external components.
Integrated thermal shutdown and short-circuit protection mechanisms safeguard the circuit under fault conditions.

Applications

Power distribution networks in automotive electronic control units
Load switching for peripheral devices in infotainment systems
Protection circuits for sensor modules in advanced driver assistance systems

Procurement Notes

Verify that the specific part number suffix matches the required automotive grade and package variant. Confirm compatibility with your board layout regarding the 12-QFN footprint and thermal pad requirements. Ensure design specifications align with the documented electrical limits before finalizing procurement orders.

Selection Notes

Select this component when designing for automotive environments requiring robust load switching with high current capacity. The low on-resistance minimizes power loss, while the wide input voltage range accommodates various system bus architectures. Consider the programmable current limit feature for tailored overcurrent protection strategies.

Part Context

This device belongs to the MPQ5073 series of power switches, which are engineered for efficient power management in demanding applications. The series offers various configurations to suit different current and voltage requirements, providing designers with flexible options for integrating reliable switching solutions into complex electronic systems.

Replacement Considerations

Consult official manufacturer documentation for verified cross-reference part numbers. Direct replacements must match the electrical specifications and pinout configuration to ensure functional equivalence without redesigning the host circuitry.
