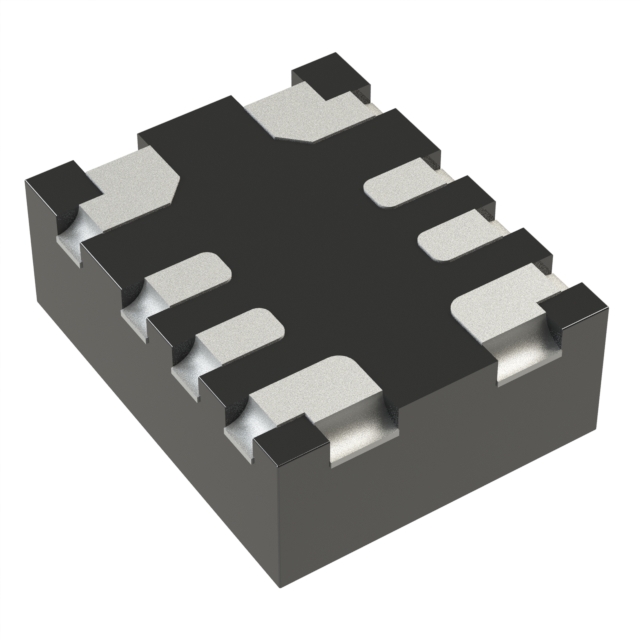

MPQ5871GRPE-AEC1-Z

$0.66

Description：36V, 60M, SINGLE-CHANNEL, SMART
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR)

SKU:7a5487815eac Category: Power Distribution Switches, Load Drivers Brand: Monolithic Power Systems Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：36V, 60M, SINGLE-CHANNEL, SMART
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR)
Switch Type：General Purpose
Number of Outputs：1
Ratio - Input:Output：1:01
Output Configuration：High Side
Output Type：N-Channel
Interface：On/Off
Voltage - Load：5V ~ 36V
Voltage - Supply (Vcc/Vdd)：5V ~ 36V
Current - Output (Max)：1A
Rds On (Typ)：60mOhm
Input Type：Non-Inverting
Features：Slew Rate Controlled
Fault Protection：Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, UVLO
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Surface Mount, Wettable Flank
Supplier Device Package：8-QFN (2x2.5)
Package / Case：8-VFDFN
Grade：Automotive
Qualification：AEC-Q100

Download product information

MPQ5871GRPE-AEC1-Z

Overview

The MPQ5871GRPE-AEC1-Z is a single-channel smart high-side load switch from Monolithic Power Systems, designed for automotive applications. It operates within an input voltage range of 5 V to 36 V and features a maximum on-resistance of 80 mOhms. The device supports an output current of 1 A with a current limit of 2 A. It is qualified under the AEC-Q100 standard and functions reliably across an operating temperature range of -40°C to +150°C. Packaged in a QFN-8 surface-mount format, it dissipates up to 4.46 W of power.

Feature Summary

AEC-Q100 Grade 1 qualification for automotive reliability
Smart high-side switching architecture
Integrated low on-resistance power MOSFET

Applications

Automotive power distribution networks
High-side load switching for vehicle peripherals
Battery protection circuits

Procurement Notes

Verify the specific suffix 'Z' against official MPS documentation to confirm packaging details and compliance status. Ensure that the QFN-8 package dimensions align with your PCB layout requirements. Cross-reference the thermal dissipation specifications with your system's heat management strategy to maintain safe operating temperatures during continuous load conditions.

Selection Notes

Select this component when a robust, automotive-grade high-side switch is required for 12V or 24V vehicle systems. The 80 mOhm on-resistance offers a balance between efficiency and cost for loads up to 1 A. Consider the wide operating temperature range and high junction temperature capability for harsh automotive environments where standard commercial switches may fail.

Part Context

This part belongs to the MPQ5871 series of smart load switches from Monolithic Power Systems. The series is engineered for automotive electronics, providing integrated protection and diagnostic features. The GRPE suffix indicates a specific tape-and-reel packaging configuration suitable for automated assembly processes in high-volume manufacturing environments.
