MPQ7790GF-AEC1-Z

$4.58

Description：18V, 15W, LOW-EMI, MONO BTL CLAS
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4c4f55b69942 Category: Audio Amplifiers Brand: Monolithic Power Systems Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：18V, 15W, LOW-EMI, MONO BTL CLAS
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Class D
Output Type：1-Channel (Mono)
Max Output Power x Channels @ Load：15W x 1 @ 8Ohm
Voltage - Supply：5.5V ~ 18V
Features：-
Mounting Type：Surface Mount
Supplier Device Package：20-TSSOP-EP

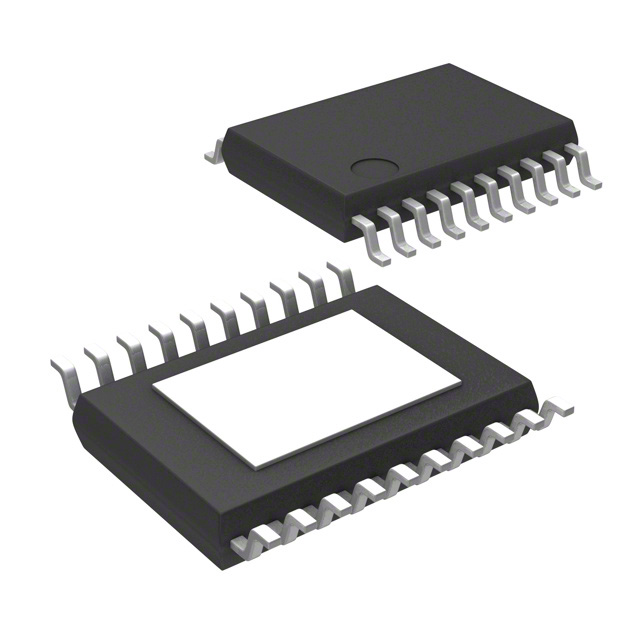

Package / Case：20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Operating Temperature：-40°C ~ 125°C (TJ)
Grade：Automotive
Qualification：AEC-Q100

Download product information

MPQ7790GF-AEC1-Z

Overview

The MPQ7790GF-AEC1-Z is a single-channel Class-D audio amplifier manufactured by Monolithic Power Systems. It operates within a supply voltage range of 5V to 18V and delivers up to 15W of output power into an 8-ohm load. The device features a total harmonic distortion plus noise (THD+N) of 0.79% and supports a maximum output current of 4.5A. Designed for automotive applications, it holds AEC-Q100 qualification and functions across a junction temperature range of -40°C to 125°C. The component is housed in a 20-TSSOP package with exposed pad.

Feature Summary

Low electromagnetic interference design suitable for sensitive audio environments
Automotive-grade reliability certified under AEC-Q100 standards
Mono bridge-tied load configuration for efficient single-channel amplification

Applications

Automotive infotainment systems
Vehicle door speaker integration
Center channel audio modules

Procurement Notes

Verify the complete part number including suffixes to ensure correct packaging and automotive qualification status. Confirm that the specific revision matches the required datasheet version for compatibility with existing designs. Cross-reference manufacturer documentation to validate environmental compliance and RoHS3 status before finalizing procurement orders.

Selection Notes

Select this component when a single-channel high-power solution is required for automotive audio architectures. Ensure the system design accommodates the 20-TSSOP-EP package dimensions and thermal requirements. Verify that the input signal levels and load impedance align with the specified 8-ohm operational parameters for optimal performance.

Part Context

This amplifier belongs to the MPQ7790 family of low-EMI Class-D audio solutions designed specifically for automotive use. The GF-AEC1-Z designation indicates automotive qualification and specific packaging variants. It serves as a dedicated mono amplifier within the broader portfolio of Monolithic Power Systems' automotive audio products.

Replacement Considerations

MPQ7790GF-AEC1-P is listed as a similar product offering identical electrical specifications and automotive qualification. Verify pinout compatibility and thermal characteristics before substituting.
