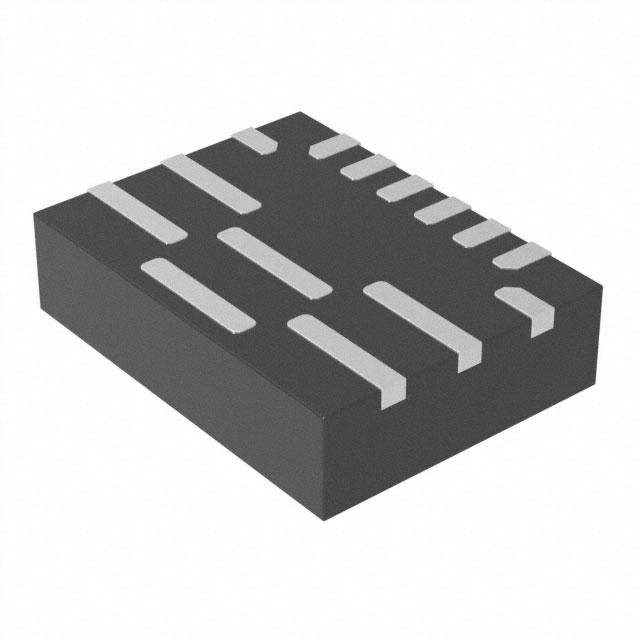

MPQ8616GL-6-P

$4.52

Description：IC REG BUCK ADJ 6A 14QFN
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:6279a1c2d0b4 Category: Voltage Regulators - DC DC Switching Regulators Brand: Monolithic Power Systems Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MPQ8616GL-6-P is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists Monolithic Power Systems Inc.. Its product description is IC REG BUCK ADJ 6A 14QFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for MPQ8616GL-6-P

Description：IC REG BUCK ADJ 6A 14QFN
Series：-
Mfr：Monolithic Power Systems Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Adjustable
Number of Outputs：1
Voltage - Input (Min)：1.5V
Voltage - Input (Max)：6V
Voltage - Output (Min/Fixed)：0.61V
Voltage - Output (Max)：4.5V
Current - Output：6A
Frequency - Switching：300kHz ~ 1MHz
Synchronous Rectifier：Yes
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Package / Case：14-VFQFN
Supplier Device Package：14-QFN (3x4)
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for MPQ8616GL-6-P

MPQ8616GL-6-P

Voltage Regulators - DC DC Switching Regulators Overview

The MPQ8616GL-6-P is a synchronous step-down converter from Monolithic Power Systems, housed in a 14-VFQFN package. It supports an input voltage range of 1.5 V to 6 V and delivers up to 6 A of output current. The device features adjustable switching frequencies between 300 kHz and 1 MHz, with an output voltage range of 0.61 V to 4.5 V. Operating temperatures span from -40°C to +125°C TJ.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Integrated synchronous rectification for high efficiency
Adjustable current limit protection
Programmable switching frequency
Shutdown control capability

Voltage Regulators - DC DC Switching Regulators Applications

Point-of-load regulation for embedded systems
Power supply stages for industrial controllers
Voltage conversion for communication equipment

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the component status as Not Recommended for New Designs (NRND). Confirm availability through authorized distributors, as stock may be limited or subject to factory special orders. Ensure compatibility with existing PCB footprints before finalizing procurement decisions.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this part for applications requiring a compact solution with input voltages up to 6 V. Consider the 14-QFN package for space-constrained designs. Evaluate thermal performance at maximum load currents within the specified temperature range to ensure reliable operation.

Voltage Regulators - DC DC Switching Regulators Part Context

This component belongs to the MPQ8616 series of step-down converters. It shares architectural similarities with other MPS devices like the MPQ8616GL-6-Z, differing primarily in packaging suffixes. The series focuses on providing efficient power management for low-voltage digital loads.
