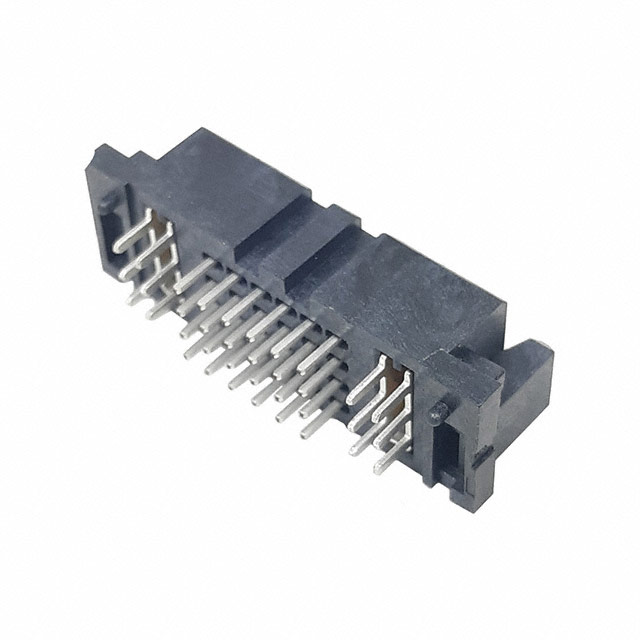

MPSC-01-80-01-01-01-L-RA-LC

MPSC-01-80-01-01-01-L-RA-LC is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN RCPT 82POS GOLD PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for MPSC-01-80-01-01-01-L-RA-LC

• Description：CONN RCPT 82POS GOLD PCB R/A
• Series：PowerStrip™ 30 MPSC
• Mfr：Samtec Inc.
• Package：Tray,Tray
• Connector Type：Receptacle
• Contact Type：Forked
• Style：Board to Board
• Number of Positions：82 (80 + 2 Power)
• Number of Positions Loaded：All
• Pitch - Mating：-
• Number of Rows：4
• Row Spacing - Mating：0.079" (2.00mm)
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Insulation Color：Black
• Insulation Height：0.400" (10.16mm)
• Contact Length - Post：0.107" (2.71mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Lock, Mounting Flange
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for MPSC-01-80-01-01-01-L-RA-LC
