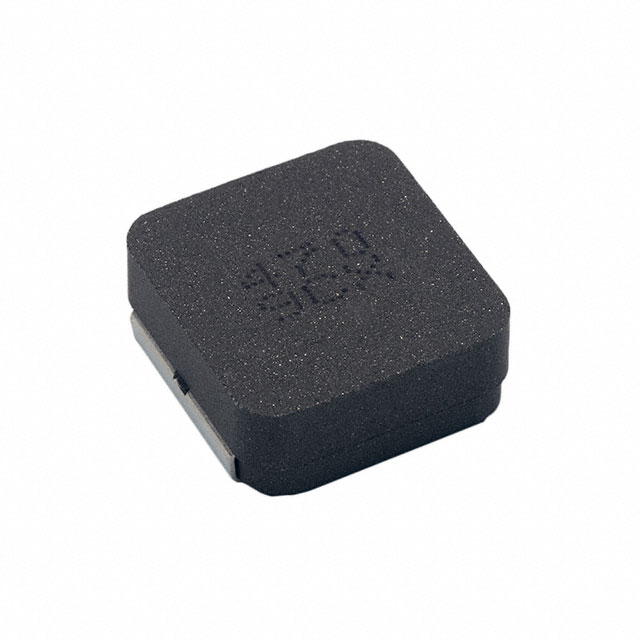

MPXV1D0630LR33 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists KEMET. Its product description is FIXED IND 330NH 21.1A 3.2MOHM SM. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for MPXV1D0630LR33
- Description：FIXED IND 330NH 21.1A 3.2MOHM SM
- Series：METCOM MPXV
- Mfr：KEMET
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：-
- Material - Core：Metal Composite
- Inductance：330 nH
- Tolerance：±20%
- Current Rating (Amps)：21.1 A
- Current - Saturation (Isat)：25A
- Shielding：Shielded
- DC Resistance (DCR)：3.2mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：84MHz
- Ratings：AEC-Q200
- Operating Temperature：-55°C ~ 155°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.276" L x 0.256" W (7.00mm x 6.50mm)
- Height - Seated (Max)：0.118" (3.00mm)
- Features：-
Fixed Inductors datasheet and documents for MPXV1D0630LR33
Fixed Inductors Overview
The KEMET MPXV1D0630LR33 is a shielded surface-mount power inductor from the MPXV series, designed for automotive applications. It features a metal composite core and molded construction. Key electrical parameters include an inductance of 330 nH with a ±20% tolerance. The component supports a maximum DC current of 21.1 A and a saturation current of 25 A. Its maximum DC resistance is 3.2 mOhms. The self-resonant frequency is 48 MHz at a test frequency of 100 kHz. It operates within a temperature range of -55°C to +155°C and holds AEC-Q200 qualification.
Fixed Inductors Feature Summary
- AEC-Q200 qualified for automotive reliability standards
- Shielded design minimizes electromagnetic interference
- Metal composite core provides stable performance under high current loads
Fixed Inductors Applications
- Automotive power distribution systems
- On-board charger circuits
- DC-DC converter output filtering
Fixed Inductors Procurement Notes
Verify the specific suffix against the manufacturer datasheet to confirm exact electrical tolerances and packaging options. Ensure the ordering code matches the required reel or cut tape quantity. Cross-reference the AEC-Q200 certification status if strict automotive compliance is mandated for the final assembly.
Fixed Inductors Selection Notes
Select this component when a compact SMD footprint is required alongside high current handling capabilities. The low DCR value helps minimize conduction losses in efficient power stages. Consider the shielding characteristics if adjacent sensitive circuitry requires magnetic isolation. Verify thermal management requirements given the high current rating and operating temperature range.
Fixed Inductors Part Context
This part belongs to the KEMET MPXV series of metal composite power inductors. These components are engineered specifically for harsh automotive environments. The series offers various inductance values and current ratings within standardized footprints to facilitate design flexibility across different power electronics architectures.
Fixed Inductors Replacement Considerations
MPXV1D0630L3R3
Fixed Inductors FAQ
What is the saturation current for the MPXV1D0630LR33?
The saturation current is 25 A.
Is this inductor suitable for high-frequency switching applications?
Yes, it has a self-resonant frequency of 48 MHz, making it suitable for typical automotive switching frequencies.
