Product Detailed Parameters
- Description：FERRITE BEAD 120 OHM 0201 1LN
- Series：MPZ-H
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：1
- Impedance @ Frequency：120 Ohms @ 100 MHz
- Current Rating (Max)：1A
- DC Resistance (DCR) (Max)：130mOhm
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Package / Case：0201 (0603 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.013" (0.33mm)
- Size / Dimension：0.024" L x 0.012" W (0.60mm x 0.30mm)
- Features：-
Download product information
Overview

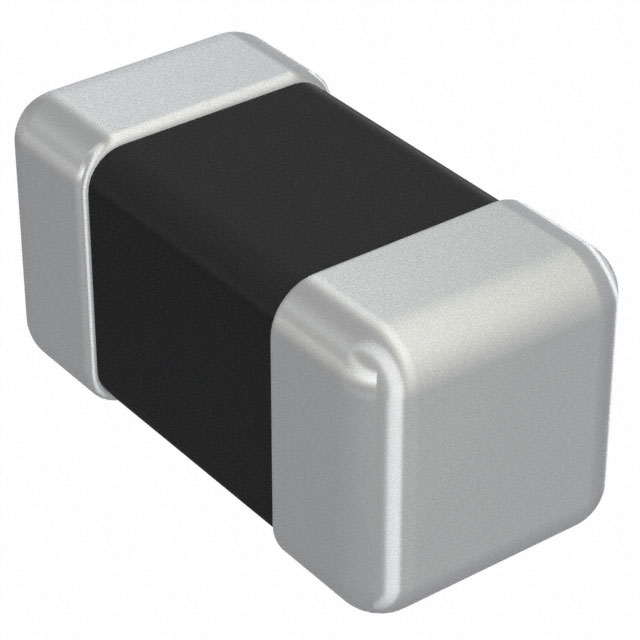

The MPZ0603S121HT000 is a multi-layer ferrite bead from the MPZ-H series, designed for power line applications. It features a 0201 (0603 metric) surface-mount package with dimensions of 0.6 mm length, 0.3 mm width, and 0.3 mm height. The component provides an impedance of 120 Ohms at a test frequency of 100 MHz with a tolerance of ±25%. It supports a maximum DC current of 1 A and has a maximum DC resistance of 0.13 Ohms. The operating temperature range spans from -55°C to +125°C.
Feature Summary
- Multi-layer construction optimized for high-current power line filtering
- Low DC resistance design minimizes voltage drop in power circuits
- Compact 0201 footprint suitable for dense PCB layouts
Applications
- Power supply output filtering
- DC-DC converter noise suppression
- High-current signal line protection
Procurement Notes
Verify the specific suffix HT000 corresponds to the required tape and reel packaging configuration. Confirm RoHS compliance status through official TDK documentation prior to integration. Ensure the ordering quantity aligns with standard factory pack sizes to avoid handling discrepancies during assembly.
Selection Notes
Select this component when low DC resistance and high current handling are prioritized over maximum impedance values. The 0201 size constrains thermal dissipation capabilities compared to larger packages. Evaluate the 120 Ohm impedance profile against target noise frequencies to ensure effective attenuation without excessive signal loss.
Part Context
This part belongs to the MPZ-H series, which distinguishes itself from the MMZ series by targeting power lines rather than general signal lines. The MPZ series emphasizes lower DC resistance and higher current ratings, making it distinct within TDK's ferrite bead portfolio for power management applications.
Replacement Considerations
Publicly confirmed substitutes include MPZ0603S121HT001 or other MPZ-H series variants with identical impedance and current ratings. Verify package compatibility and electrical parameters before substitution.
