Product Detailed Parameters
- Description：FERRITE BEAD 22 OHM 0201 1LN
- Series：MPZ
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power Line
- Number of Lines：1
- Impedance @ Frequency：22 Ohms @ 100 MHz
- Current Rating (Max)：1A
- DC Resistance (DCR) (Max)：65mOhm
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Package / Case：0201 (0603 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.013" (0.33mm)
- Size / Dimension：0.024" L x 0.012" W (0.60mm x 0.30mm)
- Features：-
Download product information
Overview

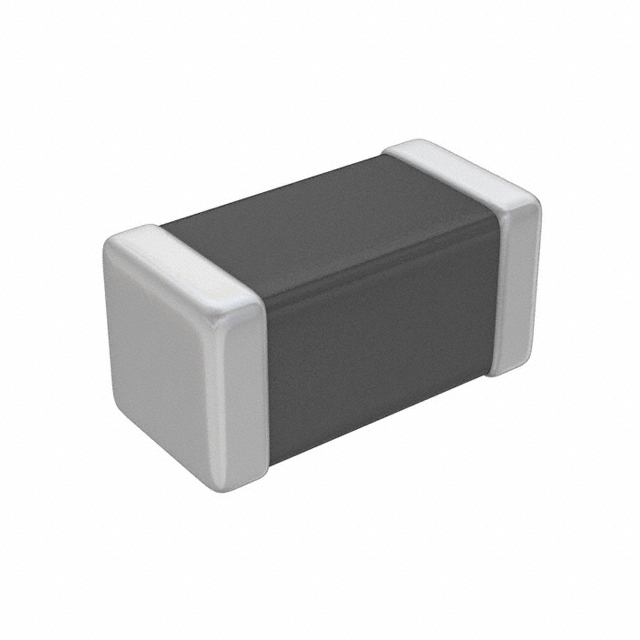

The MPZ0603S220CT000 is a ferrite chip bead from the MPZ series manufactured by TDK Corporation. It features a 0201 (0603 metric) surface-mount package with dimensions of 0.6 mm length, 0.3 mm width, and 0.3 mm height. The component provides an impedance of 22 Ohms at a test frequency of 100 MHz with a tolerance of 25%. It supports a maximum DC current of 1 A and has a maximum DC resistance of 65 mOhms. The operating temperature range spans from -55°C to +125°C.
Feature Summary
- Designed for power line noise suppression applications
- Compact 0201 surface-mount footprint for space-constrained layouts
- High current handling capability suitable for power rails
Applications
- Power supply input filtering
- DC-DC converter output noise reduction
- General signal line protection in commercial grade electronics
Procurement Notes
Verify the specific suffix 'CT' indicates cut-tape packaging when ordering. Confirm RoHS compliance status through official TDK documentation prior to integration. Ensure the selected variant matches the required impedance tolerance and current rating for the target circuit design.
Selection Notes
Select this component for applications requiring low-profile noise suppression on power lines. Compare against the MMZ series if higher current ratings are needed, or the MPS series for different impedance characteristics. Verify that the 1A current rating meets the peak load requirements of the specific power rail being filtered.
Part Context
This part belongs to the MPZ series of ferrite chip beads, which are optimized for general signal and power line noise suppression. The series offers various impedance values and current ratings within standard EIA sizes. The MPZ0603S220CT000 specifically targets compact designs requiring moderate noise attenuation at high frequencies.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult TDK technical support for direct equivalents or cross-references based on specific electrical requirements.
