MPZ1608S600ATAH0

Overview

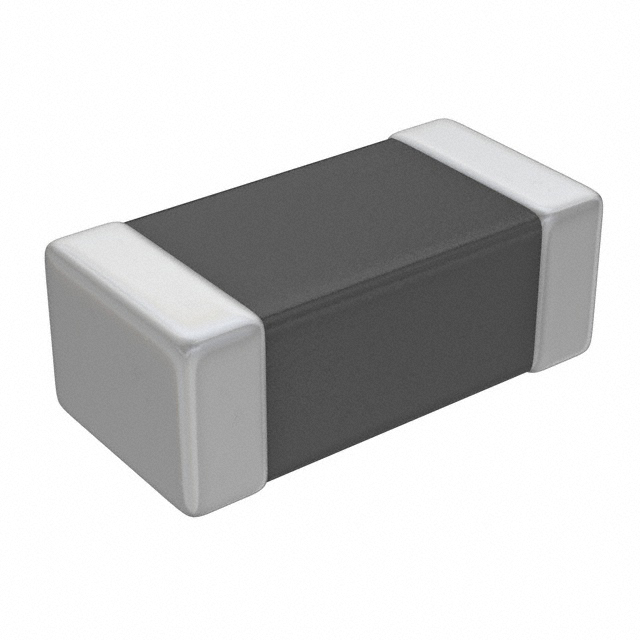

The MPZ1608S600ATAH0 is a multilayer ferrite bead from the TDK MPZ series, designed for EMI suppression in power lines. It features a 0603 (1608 metric) surface-mount package with dimensions of 1.6 mm length, 0.8 mm width, and 0.6 mm height. The component provides an impedance of 60 Ohms at a test frequency of 100 MHz. It supports a maximum DC current rating of 3.5 A and has a maximum DC resistance of 20 mOhms. The device operates within a temperature range of -55°C to +125°C and includes a shielded construction.

Feature Summary

• Multilayer ferrite chip bead structure for effective high-frequency noise suppression
• Shielded design to minimize electromagnetic interference coupling
• High current handling capability suitable for power line applications
• Compact 0603 surface-mount footprint for space-constrained PCB layouts

Applications

• Power supply circuits
• Battery charger systems
• Portable electronic devices
• Energy-efficient system designs

Procurement Notes

Verify the complete part number including suffixes against official TDK documentation to ensure correct impedance and current ratings. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents. Check for any specific handling requirements related to the multilayer ceramic construction during assembly processes.

Selection Notes

Select this component when shielding is required to prevent magnetic field radiation from affecting nearby sensitive circuits. Ensure the operating current remains below the 3.5 A rating to maintain performance and reliability. Verify that the 0603 package size fits the available board space and that the soldering profile matches the thermal characteristics of the multilayer ferrite material.

Part Context

This ferrite bead belongs to the MPZ series, which is specifically engineered for EMI countermeasures in power lines. The series offers various impedance values and current ratings within standard industrial packages. The MPZ1608S600ATAH0 variant targets applications requiring moderate impedance with high current capacity in a compact form factor.

Replacement Considerations

Consult TDK official substitution guides for compatible alternatives within the MPZ series. Verify that any substitute maintains equivalent impedance at 100 MHz and meets the 3.5 A current requirement. Ensure physical dimensions and terminal configurations match the existing PCB layout to avoid rework.
