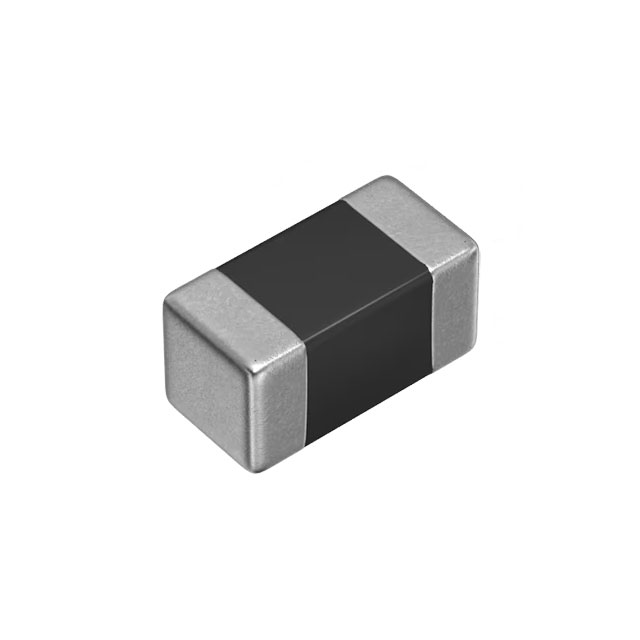

MPZ1608SPH220ATDH5

$0.12

Description：Beads,Auto,22,8.0A,-55~125
Series：*
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e19da23d29e7 Category: Ferrite Beads and Chips Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：Beads,Auto,22,8.0A,-55~125
Series：*
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：-
Number of Lines：-
Impedance @ Frequency：-
Current Rating (Max)：-
DC Resistance (DCR) (Max)：-
Ratings：-
Operating Temperature：-
Package / Case：-
Mounting Type：-
Height (Max)：-
Size / Dimension：-
Features：-

Download product information

MPZ1608SPH220ATDH5

Overview

The MPZ1608SPH220ATDH5 is a shielded ferrite chip bead from the TDK MPZ series, designed for automotive power line applications. It features a 0603 (1608 metric) surface-mount package with dimensions of 1.6 mm length, 0.8 mm width, and 0.6 mm height. The component provides an impedance of 22 Ohms at a test frequency of 100 MHz and supports a maximum DC current of 8 A. Its maximum DC resistance is 4 mOhms, ensuring minimal voltage drop in high-current circuits. Certified to AEC-Q200 standards, it operates within a temperature range of -55°C to +125°C.

Feature Summary

High current handling capability up to 8 A for efficient power line noise suppression
Shielded construction to prevent magnetic interference with adjacent components
Automotive grade certification compliant with AEC-Q200 reliability standards

Applications

Electric vehicle drive systems
Smart cockpit electronic modules
Domain controller power inputs

Procurement Notes

Verify the specific suffix 'PH' against official TDK documentation to confirm the 8A rating and 4mOhm DCR specifications. Ensure the ordering part number matches the exact impedance value of 22 Ohms at 100 MHz. Confirm that the AEC-Q200 qualification status is explicitly stated for this variant in the manufacturer's datasheet before finalizing procurement.

Selection Notes

Select this component when designing power stages requiring significant current capacity alongside EMI filtering. The low DC resistance minimizes power loss compared to standard ferrite beads. The shielded design is critical for dense PCB layouts where magnetic coupling must be avoided. Verify thermal management requirements given the high current rating and ambient operating temperatures.

Part Context

This part belongs to the MPZ series of ferrite chip beads, specifically engineered for automotive electronics. The MPZ series focuses on high-performance noise suppression in demanding environments. The MPZ1608SPH variant represents a specialized high-current iteration within the standard 0603 footprint, addressing the need for compact power filtering solutions in modern electric vehicles.
